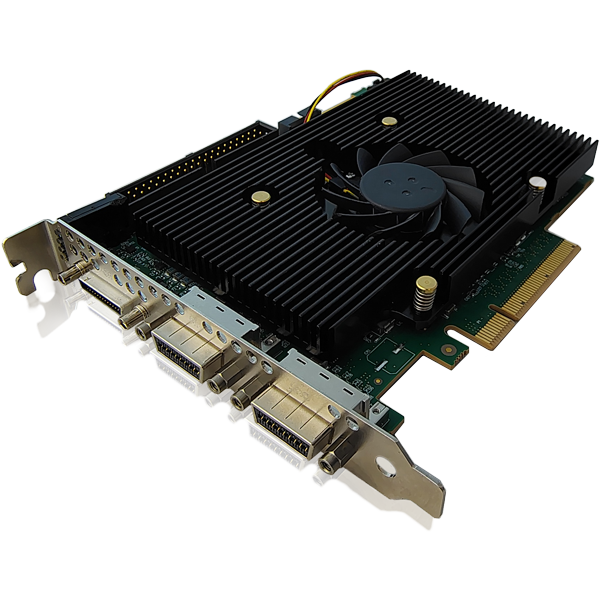

The Teledyne DALSA Xtium3-CLHS PX8 is a high-performance Camera Link HS frame grabber designed for maximum sustained throughput and high-speed image acquisition. Featuring a half-length PCI Express Gen4 x8 architecture, this single-slot, single-cable solution supports up to 7 CLHS lanes operating at 12.5 Gbps per lane, providing a total transmission rate of 87.5 Gbps. The Xtium3-CLHS PX8 delivers camera acquisition bandwidth up to 10.4 GB/s and sustained PCIe host transfer rates up to 13.5 GB/s.
Compatible with high-performance area scan and line scan cameras, the Xtium3-CLHS PX8 uses the CLHS X-protocol with 64b/66b encoding for highly efficient data transmission. Its CX4 interface supports Active Optical Cables (AOC), enabling maximum image acquisition rates over cable lengths exceeding 30 meters. Integrated data forwarding also enables incoming image data to be distributed in real time to multiple computers for high-performance distributed image processing.
The Teledyne DALSA's Sapera LT SDK is a free image acquisition and control toolkit for Teledyne DALSA 2D/3D, GigE, Camera Link, Camera Link HS cameras, and frame grabbers.
| Part Number | OR-B8S0-PX870 |
| Bandwidth | Input from camera(s): up to 10.4 GB/s (decimal) in frame grabber memory PCIe bus output: up to 13.5 GB/s sustained (512-byte PCIe payload) PCIe bus output: up to 13.0 GB/s sustained (256-byte PCIe payload) |
| Board Type | PCIe |
| Host Bus | PCIe Gen4 x 8 slot |
| Board Interface | Camera Link HS |
| Connectors | Data input: 1 x CX4 thumbscrew, AOC ready Data forwarding: 1 x CX4 thumbscrew, AOC ready I/O: 1 x DH60-27P (main bracket), 1 x 26-pin shrouded header Multi-board sync: 1 x 16-pin shrouded connector |
| Camera Format | CLHS X-protocol (64b/66b encoding), up to 7 lanes |
| Transmission Rate | 87.5 Gbps (7 lanes × 12.5 Gbps) |
| Bits Per Pixel | Monochrome & RGB: 8, 10, 12-bit/pixel |
| Camera Control | External trigger input, quadrature encoder, multi-board sync, camera control through software |
| GPIO | Inputs: 6 Single ended Inputs (2 shared with external trigger) 2 Differential Inputs (For Rotary Encoder Dual or Quadrature) Outputs: 4 LVTTL outputs (2 shared with strobe) 8 Open Collector General Purpose outputs |
| Frame Buffer | 8 GB for Images (shared with processing functions) |
| Features | Supports T2IR (Trigger to Image Reliability) framework End of line statistic metadata Multi-board synchronization Data forwarding Image processing functions like : LUT White balance Image flip Data conversion FFC/FLC TDI multi-planes (up to 4-arrays) with summing or averaging) 1-planes HDR Automatic TDI multi-planes alignment (up to 4-arrays |
| Software | Sapera LT SDK, Contact us for GenTL driver support |
| OS Support | Windows 11 (64-bit), Linux (64-bit) : Ubuntu LTS, Debian, RHEL, Suse |
| Input Camera Port | 1 port ( 1 camera) |
