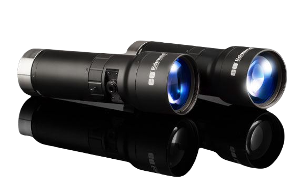

Edmund Optics CobaltTL™ Telecentric Lenses with inline illumination options are high resolution C-mount telecentric lenses designed for industrial applications where precise measurement is essential. The very low aperture - as low as f/4 enables high light throughput. With distortion as low as 0.014° telecentricity, these telecentric lenses are widely used for inspection, measurement, gauging and image stitching applications. CobaltTL telecentric lenses are compatible with Sony IMX304, Sony IMX183 and other 17.6mm diagonal sensor / 1.1" format sensors.
Inline versions of the CobaltTL lenses enable the inline illumination port to be rotated or repositioned. CobaltTL lenses are built with Edmund Optics TECHSPEC® components for exceptional image quality and measurement accuracy. They are designed for industrial environments to withstand high vibrations with a recessed set screw to lock the iris.
Edmund Optics is a leading global manufacturer and supplier of high quality imaging lenses for machine vision. Edmund Optics telecentric lenses are available in a range of magnifications that also includes a selection of SWIR telecentric lenses and telecentric lenses with in-line illumination. Contact us if you would like help choosing the right lens for your industrial machine vision applications.
Scroll right to see all specifications.
| Get Quote |
Data Sheet |
Lens Outline Drawing |
Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | ||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Part number | Mag. | Maximum Image Circle | Max. Sensor Format |
Horizontal FOV 1.2" Sensor | Horizontal FOV 2/3" Sensor | Horizontal FOV 1" Sensor | Horizontal FOV 1.1" Sensor | Horizontal FOV 1/1.8" Sensor | FOV @ Max Sensor Format H x V |
Working Distance | Typical Telecentricity @ 520nm (°) | Typical Distortion @ 520nm (%) | NA Object Side |
Wavelength | Aperture (f/#) | Coating | Depth of Field (mm) | Flange Distance |
Length | Length Excluding Threads | Filter Thread | Maximum Diameter | Weight (g) | Mount | |||
 |  | | 0.274X In-Line Illumination CobaltTL* | 21-069 | 0.274X | 1.1" | 29.20mm | 40.14mm | 58.40mm | 51.39mm | 32.85mm | 51.39 x 38.54mm | 110 | <0.146 | <0.037 | 0.027 | f/4.5 - f/22 | 425 - 675nm BBAR | ±15.59mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 226.50mm | 222.50 | M77 x 0.75 (Female) | 81.80mm | 1230 | C-Mount | ||
| | | 0.274X CobaltTL | 21-068 | 0.274X | 1.1" | 29.20mm | 40.14mm | 58.40mm | 51.39mm | 32.85mm | 51.39 x 38.54mm | 110 | <0.146 | <0.037 | 0.027 | f/4.5 - f/22 | 425 - 675nm BBAR | ±15.59mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 226.50mm | 222.50 | M77 x 0.75 (Female) | 81.80mm | 1230 | C-Mount | ||
| | | 0.28X CobaltTL | 62-921 | 0.28X | 1.1" | 28.86mm | 39.69mm | 57.73mm | 50.8mm | 32.47mm | 50.7 x 37.1mm | 182 | <0.113 | <0.008 | 0.023 | VIS | f/6 - f/22 | 425 - 675nm BBAR | ±12.44mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 197.50mm | M132 x 0.75 (Female) | 138.6mm | 736 | C-Mount | ||
| | | 0.345X CobaltTL | 15-870 | 0.345X | 1.1" | 23.22mm | 31.93mm | 46.44mm | 40.88mm | 26.12mm | 40.88 x 30.65mm | 114 | <0.094 | <0.088 | 0.034 | VIS | f/5 - f/16 | 425 - 675nm BBAR | ±8.87mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 195.50mm | M67 x 0.75 (Female) | 70.0mm | 975 | C-Mount | ||
| | | 0.345X In-Line Illumination CobaltTL* | 15-871 | 0.345X | 1.1" | 23.22mm | 31.93mm | 46.44mm | 40.88mm | 26.12mm | 40.88 x 30.65mm | 114 | <0.094 | <0.088 | 0.034 | VIS | f/5 - f/16 | 426 - 675nm BBAR | ±8.87mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 195.50mm | M67 x 0.75 (Female) | 70.0mm | 975 | C-Mount | ||
| | | 0.367X CobaltTL | 88-602 | 0.367X | 1.1" | 21.82mm | 30mm | 43.66mm | 38.41mm | 24.55mm | 38.4 x 28.8mm | 169 | <0.114 | <0.084 | 0.031 | VIS | f/6 - f/16 | 425 - 675nm BBAR | ±7.92mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 163.50mm | M67 x 0.75 (Female) | 70.0mm | 627 | C-Mount | ||
| | | 0.5X CobaltTL | 62-911 | 0.5X | 1.1" | 16.09mm | 22.13mm | 32.19mm | 28.32mm | 18.1mm | 28.4 x 20.8mm | 175 | <0.252 | <0.041 | 0.041 | VIS | f/6 - f/22 | 425 - 675nm BBAR | ±4.16mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 172.90mm | M86 x 1.00 (Female) | 90.0mm | 1061 | C-Mount | ||
| | | 0.55X CobaltTL | 88-603 | 0.55X | 1.1" | 14.55mm | 20.01mm | 29.11mm | 25.61mm | 16.37mm | 25.6 x 19.2mm | 150.00 | <0.084 | <0.087 | 0.046 | VIS | f/6 - f/16 | 425 - 675nm BBAR | ±3.53mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 182.50mm | M58 x 0.75 (Female) | 62.0mm | 629 | C-Mount | ||
| | | 0.69X In-Line Illumination CobaltTL* | 15-873 | 0.69X | 17.60 mm | 1.1" | 11.59mm | 15.93mm | 23.17mm | 20.39mm | 13.04mm | 20.4 x 15.3mm | 110 | 0.058 | VIS | f/4.5 - f/22 | λ/4 MgF2 | ±2.16mm at f/10 (20% @ 20 lp/mm) | 175.00 | M52 x 0.75 (Female) | 55mm | 792.4 | C-Mount | ||||
| | | 0.69X CobaltTL | 15-872 | 0.69X | 17.60mm | 1.1" | 9.28mm | 12.75mm | 18.55mm | 20.39mm | 10.43mm | 20.4 x 15.3mm | 110 | 0.058 | VIS | f/4 - f/22 | λ/4 MgF2 | ±2.16mm at f/10 (20% @ 20 lp/mm) | 175.00 | M52 x 0.75 (Female) | 55mm | 796.9 | C-Mount | ||||
| | | 0.9X CobaltTL | 62-901 | 0.9X | 1.1" | 8.89mm | 12.23mm | 14.4mm | 15.65mm | 10.01mm | 15.8 x 11.6mm | 111 | <0.089 | <0.014 | 0.075 | VIS | f/6 - f/22 | 425 - 675nm BBAR | ±0.66mm at f/10 (20% @ 20 lp/mm) | 17.5mm | 199.80mm | M62 x 0.75 (Female) | 65.0mm | 853 | C-Mount |
* In-line illumination
