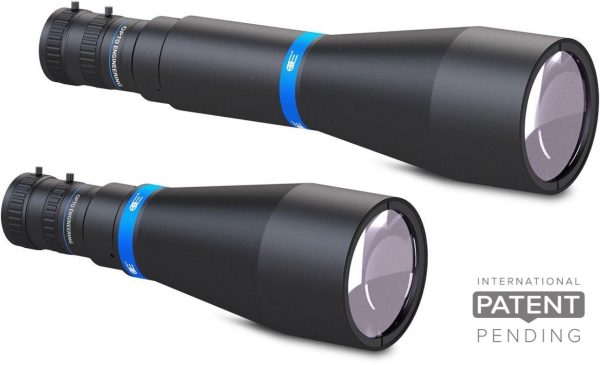

Opto Engineering HC 360° hypercentric lenses are designed for 1.1" sensors for hollow object inspection. The optical path of the rays pass through the narrow openings of hollow objects (pipes, bottles, cans, and vials, etc.) without the need to rotate an object, use a probe, or use multi-camera configurations. HC hypercentric lenses are used in numerous inspection applications including beverage, pharmaceutical,and cosmetics industries.
HC Lens Features
Opto Engineering 360° lenses are high quality lenses with superb optical performance. They are specifically designed for 360° inspection of objects, and are widely-used in machine vision applications such as automotive, pharmaceutical, and beverage inspection. There are many 360° lenses and options. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision 360° imaging application. Please contact us if you would like more information.
Product User Guide| Get Quote | Part number |
Main optical specifications | Field of view (diameter x height) | Advanced optical specifications | Mechanical specifications | Data Sheet |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image circle diameter | Min sensor size | Maximum | Medium | Minimum | Working distance with minimum object |
Working distance with medium object |
Working distance with maximum object |
ƒ/N | Mount | Length | Outer Diameter | |||
| (mm) | (mm x mm) | (mm x mm) | (mm x mm) | (mm) | (mm) | (mm) | (mm) | (mm) | ||||||
| 1 | 1 | 1 | 3 | |||||||||||
 | HCSI013 | 3.4 | 1/3" | 110.0 x 330.0 | 50.0 x 150.0 | 10.0 x 30.0 | 58.1 | 92.6 | 143.8 | 1.6 - 22 | C | 320.2 | 84 |  |
| HCSI012 | 5.1 | 1/1.8" | 110.0 x 330.0 | 50.0 x 150.0 | 10.0 x 30.0 | 58.1 | 92.6 | 143.8 | 1.6 - 22 | C | 322.8 | 84 | |
| HCSI023 | 6.7 | 2/3" | 110.0 x 330.0 | 50.0 x 150.0 | 10.0 x 30.0 | 58.1 | 92.6 | 143.8 | 1.6 - 22 | C | 324.5 | 84 | |
| HCSI3M | 10.8 | 1.1" | 110.0 x 330.0 | 50.0 x 150.0 | 10.0 x 30.0 | 58.1 | 92.6 | 143.8 | 1.4 - 22 | C | 303.9 | 84 | |
| HCBI013 | 3.4 | 1/3" | 220.0 x - | 100.0 x - | 20.0 x - | 87.4 | 242.6 | 473.8 | 1.6 - 22 | C | 244.7 | 84 | |
| HCBI012 | 5.1 | 1/1.8" | 220.0 x - | 100.0 x - | 20.0 x - | 87.4 | 242.6 | 473.8 | 1.6 - 22 | C | 247.3 | 84 | |
| HCBI023 | 6.7 | 2/3" | 220.0 x - | 100.0 x - | 30.0 x - | 107.2 | 242.6 | 473.8 | 1.6 - 22 | C | 249.1 | 84 | |
| HCBI3M | 10.8 | 1.1" | 220.0 x - | 100.0 x - | 45.0 x - | 138.8 | 242.6 | 473.8 | 1.4 - 22 | C | 228.5 | 84 | |

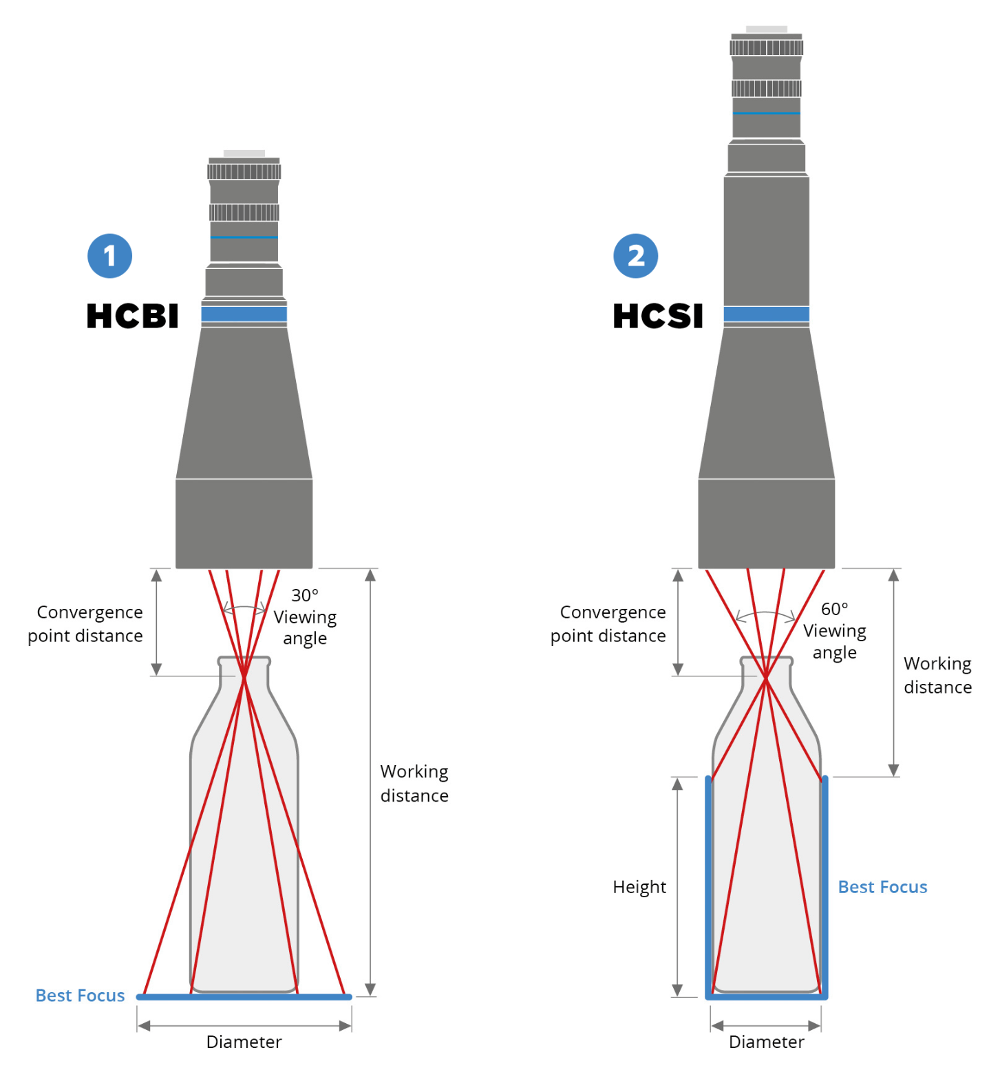

HC series hypercentric lenses are available in two different versions:

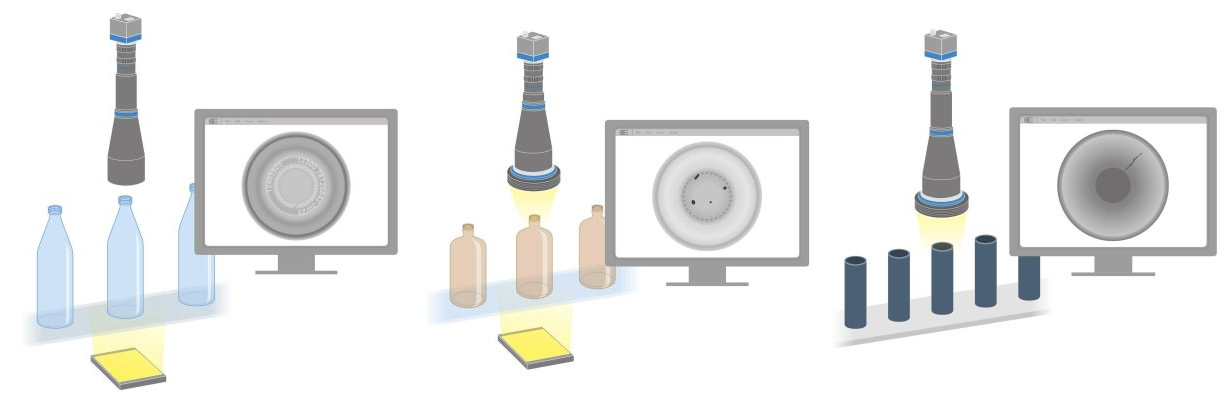

Example applications include inspection of water bottles, cosmetic containers, and tubes.
