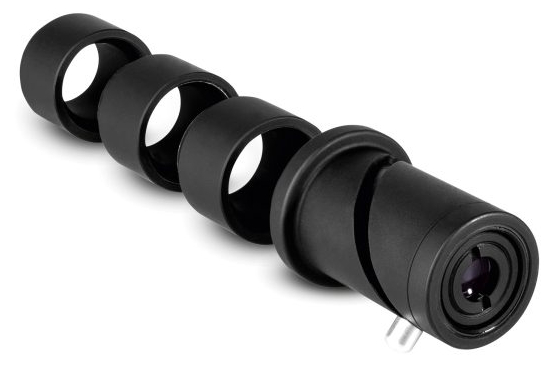

The Opto Engineering MC3-03X macro lens is optimized for sensors up to 2/3". This adjustable macro lens can be used to capture the details of many different size objects, from a few millimeters to centimeters. A set of extension tubes that are included with the lens enable the magnification range of the lens to be easily changed. The lockable knob can be used to easily adjust the magnification and focus. As the magnification changes the F-number also increases to maintain an optimal resolution, field of depth, and luminosity with near zero distortion (less than 0.05%). This multi-configuration macro lens is an excellent solution for many prototyping and industrial machine vision macro imaging applications that require adaptability.
Opto Engineering macro lenses work with a variety of sensor sizes, and are available in a wide range of magnifications. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision macro imaging application. Please contact us if you would like more information.
Product User Guide
The MC3-03X multi-configuration macro lens is adjustable from .1 to 3X magnifications as shown in the specifications table below.
| Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mag. | Number of back focal spacers | Max sensor size | 1/3” | 1/2” | 2/3” | Working distance | ƒ/N | Working ƒ/N | Distortion | Depth of field | Mount | Phase adjustment | Length | Front diameter |
| 4.80 x 3.60 | 6.40 x 4.80 | 8.50 x 7.09 | ||||||||||||
| (mm × mm) | (mm × mm) | (mm × mm) | (mm) | (%) | (mm) | (mm) | (mm) | |||||||
| 1 | 2 | 3 | 4 | 6 | ||||||||||
| 0.1 | 0 | 2/3" | 48.00 x 36.00 | 64.00 x 48.00 | 85.00 x 70.90 | 275 | 5.3 | 6 | < 0.10 | 31.1 | C | No | 50.8 | 28 |
| 0.2 | 0 | 2/3" | 24.00 x 18.00 | 32.00 x 24.00 | 42.50 x 35.45 | 136 | 5.3 | 6 | < 0.10 | 7.8 | C | No | 50.8 | 28 |
| 0.3 | 0 | 2/3" | 16.00 x 12.00 | 21.33 x 16.00 | 28.33 x 23.63 | 92 | 5.3 | 7 | < 0.08 | 4 | C | No | 50.8 | 28 |
| 0.4 | 0 | 2/3" | 12.00 x 9.00 | 16.00 x 12.00 | 21.25 x 17.73 | 71 | 5.3 | 7 | < 0.05 | 2.3 | C | No | 50.8 | 28 |
| 0.5 | 0 | 2/3" | 9.60 x 7.20 | 12.80 x 9.60 | 17.00 x 14.18 | 60 | 5.3 | 8 | < 0.04 | 1.7 | C | No | 50.8 | 28 |
| 0.6 | 0 | 2/3" | 8.00 x 6.00 | 10.67 x 8.00 | 14.17 x 11.82 | 54 | 5.3 | 9 | < 0.03 | 1.3 | C | No | 50.8 | 28 |
| 0.7 | 0 | 2/3" | 6.86 x 5.14 | 9.14 x 6.86 | 12.14 x 10.13 | 50 | 5.3 | 9 | < 0.03 | 1 | C | No | 50.8 | 28 |
| 0.8 | 0 | 2/3" | 6.00 x 4.50 | 8.00 x 6.00 | 10.63 x 8.86 | 47 | 5.3 | 10 | < 0.02 | 0.8 | C | No | 50.8 | 28 |
| 0.9 | 0 | 2/3" | 5.33 x 4.00 | 7.11 x 5.33 | 9.44 x 7.88 | 46 | 5.3 | 10 | < 0.01 | 0.6 | C | No | 50.8 | 28 |
| 1 | 0 | 2/3" | 4.80 x 3.60 | 6.40 x 4.80 | 8.50 x 7.09 | 46 | 5.3 | 11 | < 0.01 | 0.6 | C | No | 50.8 | 28 |
| 0.7 | 1 | 2/3" | 6.86 x 5.14 | 9.14 x 6.86 | 12.14 x 10.13 | 31 | 5.3 | 9 | < 0.03 | 1 | C | No | 69.3 | 28 |
| 0.8 | 1 | 2/3" | 6.00 x 4.50 | 8.00 x 6.00 | 10.63 x 8.86 | 29 | 5.3 | 10 | < 0.02 | 0.8 | C | No | 69.3 | 28 |
| 0.9 | 1 | 2/3" | 5.33 x 4.00 | 7.11 x 5.33 | 9.44 x 7.88 | 28 | 5.3 | 10 | < 0.01 | 0.6 | C | No | 69.3 | 28 |
| 1 | 1 | 2/3" | 4.80 x 3.60 | 6.40 x 4.80 | 8.50 x 7.09 | 27 | 5.3 | 11 | < 0.01 | 0.6 | C | No | 69.3 | 28 |
| 1.1 | 1 | 2/3" | 4.36 x 3.27 | 5.82 x 4.36 | 7.73 x 6.45 | 28 | 5.3 | 11 | < 0.01 | 0.5 | C | No | 69.3 | 28 |
| 1.2 | 1 | 2/3" | 4.00 x 3.00 | 5.33 x 4.00 | 7.08 x 5.91 | 28 | 5.3 | 12 | < 0.01 | 0.4 | C | No | 69.3 | 28 |
| 1.3 | 1 | 2/3" | 3.69 x 2.77 | 4.92 x 3.69 | 6.54 x 5.45 | 29 | 5.3 | 12 | < 0.01 | 0.4 | C | No | 69.3 | 28 |
| 1.4 | 1 | 2/3" | 3.43 x 2.57 | 4.57 x 3.43 | 6.07 x 5.06 | 31 | 5.3 | 13 | < 0.01 | 0.3 | C | No | 69.3 | 28 |
| 1.5 | 1 | 2/3" | 3.20 x 2.40 | 4.27 x 3.20 | 5.67 x 4.73 | 32 | 5.3 | 13 | < 0.01 | 0.3 | C | No | 69.3 | 28 |
| 1.6 | 1 | 2/3" | 3.00 x 2.25 | 4.00 x 3.00 | 5.31 x 4.43 | 34 | 5.3 | 14 | < 0.01 | 0.3 | C | No | 69.3 | 28 |
| 1.4 | 2 | 2/3" | 3.43 x 2.57 | 4.57 x 3.43 | 6.07 x 5.06 | 12 | 5.3 | 13 | < 0.02 | 0.3 | C | No | 87.8 | 28 |
| 1.5 | 2 | 2/3" | 3.20 x 2.40 | 4.27 x 3.20 | 5.67 x 4.73 | 14 | 5.3 | 13 | < 0.02 | 0.3 | C | No | 87.8 | 28 |
| 1.6 | 2 | 2/3" | 3.00 x 2.25 | 4.00 x 3.00 | 5.31 x 4.43 | 15 | 5.3 | 14 | < 0.02 | 0.3 | C | No | 87.8 | 28 |
| 1.7 | 2 | 2/3" | 2.82 x 2.12 | 3.76 x 2.82 | 5.00 x 4.17 | 17 | 5.3 | 14 | < 0.02 | 0.3 | C | No | 87.8 | 28 |
| 1.8 | 2 | 2/3" | 2.67 x 2.00 | 3.56 x 2.67 | 4.72 x 3.94 | 19 | 5.3 | 15 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 1.9 | 2 | 2/3" | 2.53 x 1.89 | 3.37 x 2.53 | 4.47 x 3.73 | 21 | 5.3 | 15 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 2 | 2 | 2/3" | 2.40 x 1.80 | 3.20 x 2.40 | 4.25 x 3.55 | 23 | 5.3 | 16 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 2.1 | 2 | 2/3" | 2.29 x 1.71 | 3.05 x 2.29 | 4.05 x 3.38 | 25 | 5.3 | 16 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 2.2 | 2 | 2/3" | 2.18 x 1.64 | 2.91 x 2.18 | 3.86 x 3.22 | 27 | 5.3 | 17 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 2.3 | 2 | 2/3" | 2.09 x 1.57 | 2.78 x 2.09 | 3.70 x 3.08 | 30 | 5.3 | 18 | < 0.02 | 0.2 | C | No | 87.8 | 28 |
| 2.1 | 3 | 2/3" | 2.29 x 1.71 | 3.05 x 2.29 | 4.05 x 3.38 | 7 | 5.3 | 16 | < 0.02 | 0.2 | C | No | 106.3 | 28 |
| 2.2 | 3 | 2/3" | 2.18 x 1.64 | 2.91 x 2.18 | 3.86 x 3.22 | 9 | 5.3 | 17 | < 0.02 | 0.2 | C | No | 106.3 | 28 |
| 2.3 | 3 | 2/3" | 2.09 x 1.57 | 2.78 x 2.09 | 3.70 x 3.08 | 11 | 5.3 | 18 | < 0.02 | 0.2 | C | No | 106.3 | 28 |
| 2.4 | 3 | 2/3" | 2.00 x 1.50 | 2.67 x 2.00 | 3.54 x 2.95 | 14 | 5.3 | 18 | < 0.02 | 0.2 | C | No | 106.3 | 28 |
| 2.5 | 3 | 2/3" | 1.92 x 1.44 | 2.56 x 1.92 | 3.40 x 2.84 | 16 | 5.3 | 19 | < 0.02 | 0.2 | C | No | 106.3 | 28 |
| 2.6 | 3 | 2/3" | 1.85 x 1.38 | 2.46 x 1.85 | 3.27 x 2.73 | 18 | 5.3 | 19 | < 0.02 | 0.1 | C | No | 106.3 | 28 |
| 2.7 | 3 | 2/3" | 1.78 x 1.33 | 2.37 x 1.78 | 3.15 x 2.63 | 21 | 5.3 | 20 | < 0.02 | 0.1 | C | No | 106.3 | 28 |
| 2.8 | 3 | 2/3" | 1.71 x 1.29 | 2.29 x 1.71 | 3.04 x 2.53 | 23 | 5.3 | 20 | < 0.02 | 0.1 | C | No | 106.3 | 28 |
| 2.9 | 3 | 2/3" | 1.66 x 1.24 | 2.21 x 1.66 | 2.93 x 2.44 | 26 | 5.3 | 21 | < 0.02 | 0.1 | C | No | 106.3 | 28 |
| 3 | 3 | 2/3" | 1.60 x 1.20 | 2.13 x 1.60 | 2.83 x 2.36 | 28 | 5.3 | 21 | < 0.02 | 0.1 | C | No | 106.3 | 28 |
