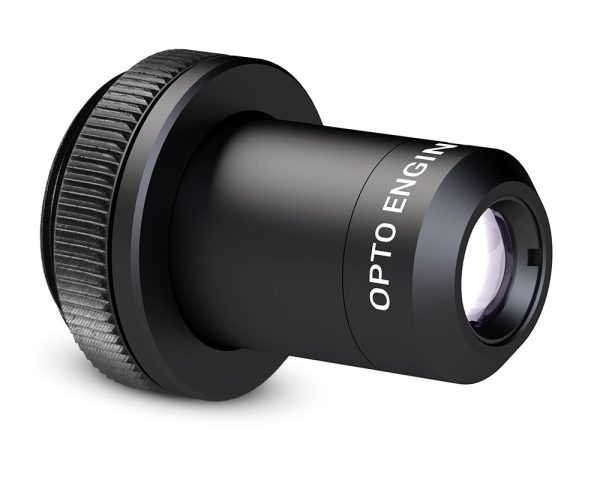

Opto Engingeering MC3M macro lenses are optimized for sensors up to 1.1". They are designed for macro applications to work at a fixed working distance to capture small objects with nearly zero distortion. MC3M Series high resolution macro lenses are available in magnifications from 0.1x to 6x. Due to their high resolution, compact size (30 mm outer diameter), near zero distortion, and very high quality at an attractive price, MC3M macro lenses are widely used for close-up, high precision machine vision applications such as inspection and parts positioning.
Opto Engineering macro lenses work with a variety of sensor sizes, and are available in a wide range of magnifications. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision macro imaging application. Please contact us if you would like more information.
*Image distortion is the percent deviation of the real image acquired by the optics compared to an ideal, undistorted image. Our macro lenses feature "Nearly Zero Distortion", which means that although perfection is hardly reachable, the maximum distortion is designed to be as close to zero as possible.
Product User Guide| Get Quote | Part number |
Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mag. | Image circle diameter | Max sensor size | 1/1.2" | 1" | 1.1" | Working distance | ƒ/N | Working ƒ/N | Distortion | Depth of field | Mount | Length | Outer diameter | ||
| 11.35 x 7.13 | 14.19 x 7.51 | 14.16 x 10.37 | |||||||||||||
| (x) | (mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm) | (%) | (mm) | (mm) | (mm) | ||||||
| 1 | 2 | 3 | 4 | 6 | |||||||||||
 | MC3M010X | 0.1 | 17.6 | 1.1" | 113.50 x 71.30 | 141.90 x 75.10 | 141.60 x 103.70 | 348.4 | 5 | 5.5 | < 0.10 | 28.5 | C | 22.9 | 30 |
| MC3M020X | 0.2 | 17.6 | 1.1" | 56.75 x 35.65 | 70.95 x 37.55 | 70.80 x 51.85 | 187.2 | 5 | 6 | < 0.08 | 7.8 | C | 26.1 | 30 |
| MC3M033X | 0.333 | 17.6 | 1.1" | 34.08 x 21.41 | 42.61 x 22.55 | 42.52 x 31.14 | 122.7 | 5 | 6.5 | < 0.05 | 3 | C | 30.4 | 30 |
| MC3M040X | 0.4 | 17.6 | 1.1" | 28.38 x 17.83 | 35.48 x 18.78 | 35.40 x 25.93 | 106.6 | 5 | 7 | < 0.05 | 2.3 | C | 32.5 | 30 |
| MC3M050X | 0.5 | 17.6 | 1.1" | 22.70 x 14.26 | 28.38 x 15.02 | 28.32 x 20.74 | 90.5 | 5 | 7.5 | < 0.03 | 1.6 | C | 35.7 | 30 |
| MC3M075X | 0.75 | 17.6 | 1.1" | 15.13 x 9.51 | 18.92 x 10.01 | 18.88 x 13.83 | 69.1 | 5 | 9 | < 0.03 | 0.8 | C | 43.8 | 30 |
| MC3M100X | 1 | 17.6 | 1.1" | 11.35 x 7.13 | 14.19 x 7.51 | 14.16 x 10.37 | 58.3 | 5 | 10 | < 0.02 | 0.5 | C | 51.8 | 30 |
| MC3M150X | 1.5 | 17.6 | 1.1" | 7.57 x 4.75 | 9.46 x 5.01 | 9.44 x 6.91 | 47.6 | 5 | 13 | < 0.02 | 0.3 | C | 67.9 | 30 |
| MC3M200X | 2 | 17.6 | 1.1" | 5.68 x 3.57 | 7.10 x 3.76 | 7.08 x 5.19 | 42.3 | 5 | 15 | < 0.02 | 0.2 | C | 84.1 | 30 |
| MC3M300X | 3 | 17.6 | 1.1" | 3.78 x 2.38 | 4.73 x 2.50 | 4.72 x 3.46 | 36.9 | 5 | 20.5 | < 0.03 | 0.1 | C | 116.4 | 30 |
| MC3M400X | 4 | 17.6 | 1.1" | 2.84 x 1.78 | 3.55 x 1.88 | 3.54 x 2.59 | 34.2 | 5 | 26 | < 0.03 | 0.1 | C | 148.6 | 30 |
| MC3M500X | 5 | 17.6 | 1.1" | 2.27 x 1.43 | 2.84 x 1.50 | 2.83 x 2.07 | 32.6 | 5 | 31 | < 0.03 | 0.1 | C | 180.8 | 30 |
| MC3M600X | 6 | 17.6 | 1.1" | 1.89 x 1.19 | 2.37 x 1.25 | 2.36 x 1.73 | 31.6 | 5 | 36 | < 0.03 | 0.1 | C | 213.1 | 30 |
