Opto Engineering PCHI 360° lenses inspect and image the inner walls and bottom of objects like holes, bottles, cones, cylinders, and threaded objects in perfect focus without no need for an optical probe. Due to the very high field of depth and a wide angle of view (>82°), the same lens can be used to image objects with different shapes and dimensions — clearly showing details and defects. PCHI 360° lens are available with 3 focusing options; a manual (locking), manual (gear) or integrated with Optotune focus tunable liquid lenses.
Opto Engineering 360° lenses are high quality lenses with superb optical performance. They are specifically designed for 360° inspection of objects, and are widely-used in machine vision applications such as automotive, pharmaceutical, and beverage inspection. There are many 360° lenses and options. Our Sales Engineers can provide expert advice and guidance on selecting the right lens for your machine vision 360° imaging application. Please contact us if you would like more information.
| Get Quote | Part number |
Main optical specifications | Field of view (diameter x height) | Advanced optical specifications | Mechanical specifications | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Image circle diameter | Min sensor size | Minimum | Maximum | Working distance with minimum object |
Working distance with maximum object |
Working ƒ/N |
Focusing | Mount | Length | Outer Diameter | ||
| (mm) | (mm x mm) | (m x mm) | (mm) | (mm) | (deg) | (mm) | (mm) | |||||
| 1 | 1 | 2 | 3 | |||||||||
 | PCHI013 | 3.6 | 1/3" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 5 | Manual (lockring) | C | 101.9 | 40 |
| PCHI012 | 4.8 | 1/2" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 6 | Manual (lockring) | C | 103.8 | 40 |
| PCHI012-MF | 4.8 | 1/2" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 6 | Manual (gear) | C | 102.9 | 37.7 |
| PCHI012-AF | 4.8 | 1/2" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 6 | Liquid lens | C | 108.5 | 40 |
| PCHI023 | 6.6 | 2/3" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 8 | Manual (lockring) | C | 108.5 | 40 |
| PCHI023-MF | 6.6 | 2/3" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 8 | Manual (gear) | C | 113.7 | 37.7 |
| PCHI023-AF | 6.6 | 2/3" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 8 | Liquid lens | C | 115.2 | 40 |
| PCHI3M | 10 | 1.1" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 13 | Manual (lockring) | C | 120.6 | 40 |
| PCHI3M-MF | 10 | 1.1" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 13 | Manual (gear) | C | 118.5 | 37.7 |
| PCHI3M-AF | 10 | 1.1" | 10.0 x 6.0 | 120.0 x 190.0 | 5 | 62 | 13 | Liquid lens | C | 122.4 | 40 |

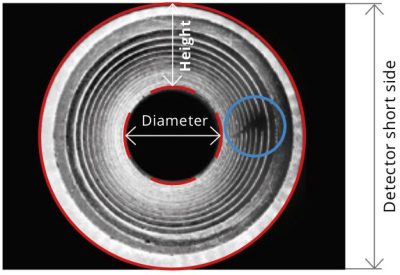

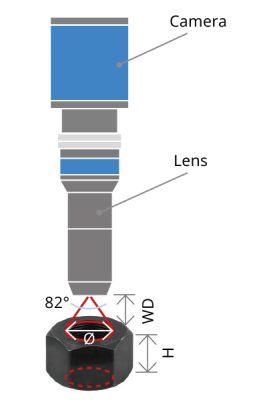

As shown in the table below PCHI 360° lenses can image cavities with a wide range of diameters and thickness. The table lists the maximum cavity height for high-resolution imaging (small pixel sizes) and normal resolution imaging (> 5 micron pixels) applications. The "r" ratio specifies the percentage of the detector area that gets covered by the image of the hole's inner walls. These working distance values ensure that the object image is inscribed exactly into the detector's short side to maximize the "r" ratio and resolution of the image.
r(%) = (Side view height px / Detector short side px) * 100
| Field of view chart for PCHI013, PCHI012 and PCHI023 lenses | |||||
|---|---|---|---|---|---|
| Hole diameter (mm) | Cavity height (mm) | r (%) | Cavity height (mm) | r (%) | Working distance (mm) |
| 10 | 6 | 23.5 | 10 | 28 | 5 |
| 15 | 8.5 | 22.5 | 14.5 | 29 | 6.5 |
| 20 | 13 | 26.5 | 22 | 32.5 | 9 |
| 25 | 18 | 26 | 31 | 33 | 11 |
| 30 | 22 | 26 | 37 | 32 | 14 |
| 40 | 31 | 26.5 | 53 | 32 | 18 |
| 50 | 40 | 27 | 68 | 32 | 23 |
| 60 | 50 | 28.5 | 85 | 32.5 | 29 |
| 70 | 60 | 28 | 102 | 33 | 35 |
| 80 | 75 | 29.5 | 120 | 34 | 41 |
| 100 | 97 | 30 | 155 | 34.5 | 52 |
| 120 | 120 | 31 | 190 | 35 | 62 |

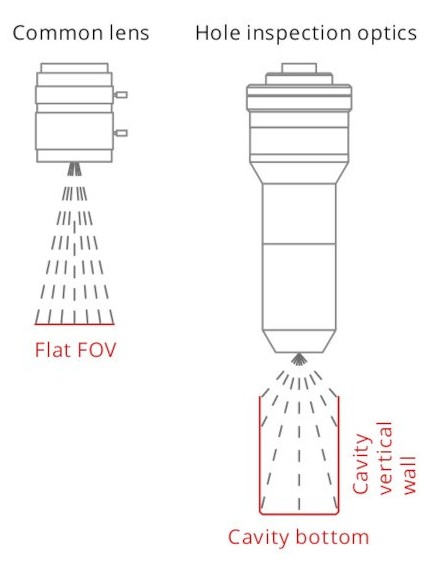

Common lens vs PCHI hole inspection lens.

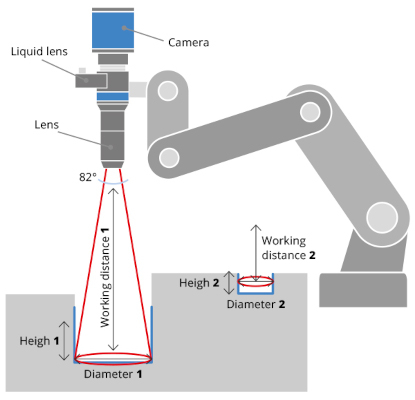

The focus can be quickly and remotely changed with PCHI AF models which are intregrated with an Optotune integrated liquid lens.
