Opto Engineering TC10M Telecentric Lenses
for sensors up to APS-C and 4k line scan cameras

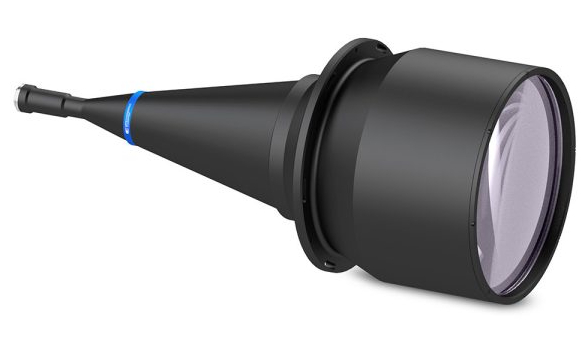

Opto Engineering TC10M telecentric lens for sensors up to APS-C and 4k line scan cameras Opto Engineering TC10M telecentric lenses with a 28 mm image circle are suitable for cameras with large format sensors up to APS-C format.

Their exceptional optical performance and high resolution make the TC10M telecentric lenses ideal for industrial machine vision applications that require high resolution imaging and precise measurement. TC10M telecentric lenses are widely used for applications such as flat panel display, mechanical parts, semiconductor and electronics inspection.

  • Wide 28mm image circle
  • Suitable for cameras with large format sensors up to APS-C
  • High resolution and low distortion
  • Robust industrial telecentric lens
  • Detailed test report with certified optical parameters

Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens for your industrial machine vision applications.


Product User Guide Back focal adjustment
Get
Quote		 Part
number		 Main optical specifications Object field of view Advanced optical specifications Mechanical specifications Data
Sheet
Mag. Image
circle
diameter		 Max
sensor
size		 4/3”
IMX387		 Line
4k-7µm		 APS-C
IMX342		 Working
distance		 Working
ƒ/N		 Telecentricity
typical
(max)		 Distortion
typical
(max)		 Depth
of
field		 Mount Length Front
diameter
18.87 x 10.64 28.67 22.36 x 16.77
(x) (mm) (mm × mm) (mm) (mm × mm) (mm) (deg) (%) (mm) (mm) (mm)
1 2 3 4 5 6 8 9
TC10M024-F 0.888 28 APS-C 21.25 x 11.98 32.29 25.18 x 18.89 67.2 11<0.07 (0.10)<0.06 (0.10) 1.2 F 148.5 44Download datasheet
TC10M024-J 0.888 28 APS-C 21.25 x 11.98 32.29 25.18 x 18.89 67.2 11<0.07 (0.10)<0.06 (0.10) 1.2 M42x1 FD 12 183 44Download datasheet
TC10M036-F 0.617 28 APS-C 30.58 x 17.24 46.47 36.24 x 27.18 102.6 11<0.07 (0.10)<0.07 (0.10) 2.4 F 176.3 61Download datasheet
TC10M036-J 0.617 28 APS-C 30.58 x 17.24 46.47 36.24 x 27.18 102.6 11<0.07 (0.10)<0.07 (0.10) 2.4 M42x1 FD 12 210.8 61Download datasheet
TC10M048-F 0.469 28 APS-C 40.23 x 22.69 61.13 47.68 x 35.76 132.9 8<0.02 (0.10)<0.05 (0.10) 3 F 213.3 75Download datasheet
TC10M048-J 0.469 28 APS-C 40.23 x 22.69 61.13 47.68 x 35.76 132.9 8<0.02 (0.10)<0.05 (0.10) 3 M42x1 FD 12 247.8 75Download datasheet
TC10M056-F 0.401 28 APS-C 47.06 x 26.53 71.5 55.76 x 41.82 157.8 8<0.03 (0.10)<0.08 (0.10) 4.1 F 237.3 80Download datasheet
TC10M056-J 0.401 28 APS-C 47.06 x 26.53 71.5 55.76 x 41.82 157.8 8<0.03 (0.10)<0.08 (0.10) 4.1 M42x1 FD 12 271.8 80Download datasheet
TC10M064-F 0.351 28 APS-C 53.76 x 30.31 81.68 63.70 x 47.78 181.9 8<0.08 (0.10)<0.04 (0.10) 5.4 F 259.8 100Download datasheet
TC10M064-J 0.351 28 APS-C 53.76 x 30.31 81.68 63.70 x 47.78 181.9 8<0.08 (0.10)<0.04 (0.10) 5.4 M42x1 FD 12 294.3 100Download datasheet
TC10M080-F 0.281 28 APS-C 67.15 x 37.86 102.03 79.57 x 59.68 226.8 8<0.03 (0.10)<0.08 (0.10) 8.4 F 307.1 116Download datasheet
TC10M080-J 0.281 28 APS-C 67.15 x 37.86 102.03 79.57 x 59.68 226.8 8<0.03 (0.10)<0.08 (0.10) 8.4 M42x1 FD 12 341.6 116Download datasheet
TC10M096-F 0.238 28 APS-C 79.29 x 44.71 120.46 93.95 x 70.46 278.6 8<0.05 (0.10)<0.07 (0.10) 11.7 F 357.5 143Download datasheet
TC10M096-J 0.238 28 APS-C 79.29 x 44.71 120.46 93.95 x 70.46 278.6 8<0.05 (0.10)<0.07 (0.10) 11.7 M42x1 FD 12 392 143Download datasheet
TC10M120-F 0.184 28 APS-C 102.55 x 57.83 155.82 121.52 x 91.14 334.6 8<0.07 (0.10)<0.06 (0.10) 19.5 F 442.4 180Download datasheet
TC10M120-J 0.184 28 APS-C 102.55 x 57.83 155.82 121.52 x 91.14 334.6 8<0.07 (0.10)<0.06 (0.10) 19.5 M42x1 FD 12 476.9 180Download datasheet
TC10M144-F 0.156 28 APS-C 120.96 x 68.21 183.78 143.33 x 107.50 396 8<0.06 (0.10)<0.08 (0.10) 27.1 F 506.9 200Download datasheet
TC10M144-J 0.156 28 APS-C 120.96 x 68.21 183.78 143.33 x 107.50 396 8<0.06 (0.10)<0.08 (0.10) 27.1 M42x1 FD 12 541.4 200Download datasheet
TC10M192-F 0.117 28 APS-C 161.28 x 90.94 245.04 191.11 x 143.33 527.6 8<0.08 (0.10)<0.07 (0.10) 48.2 F 648.4 260Download datasheet
TC10M192-J 0.117 28 APS-C 161.28 x 90.94 245.04 191.11 x 143.33 527.6 8<0.08 (0.10)<0.07 (0.10) 48.2 M42x1 FD 12 682.9 260Download datasheet
TC10M240-F 0.096 28 APS-C 196.56 x 110.83 298.65 232.92 x 174.69 492.8 8<0.03 (0.10)<0.08 (0.10) 71.6 F 827.5 322Download datasheet
TC10M240-J 0.096 28 APS-C 196.56 x 110.83 298.65 232.92 x 174.69 492.8 8<0.03 (0.10)<0.08 (0.10) 71.6 M42x1 FD 12 862 322Download datasheet
TC10M308-F 0.075 28 APS-C 251.60 x 141.87 382.27 298.13 x 223.60 500 8<0.09 (0.15)<0.10 (0.15) 117.3 F 973.3 417Download datasheet
TC10M308-J 0.075 28 APS-C 251.60 x 141.87 382.27 298.13 x 223.60 500 8<0.09 (0.15)<0.10 (0.15) 117.3 M42x1 FD 12 1007.8 417Download datasheet

Notes

  1. With Line 4k-7µm (28.67 mm diagonal) sensors, the FOV may show some vignetting at the image corners.
  2. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  3. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  4. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  6. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 5.5 μm.
  7. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  8. FD stands for Flange Distance (in mm), defined as the distance from the mounting flange to the camera detector plane.
  9. Indicates the availability of an integrated camera phase adjustment feature.
  10. Measured from the front end of the mechanics to the camera flange.
