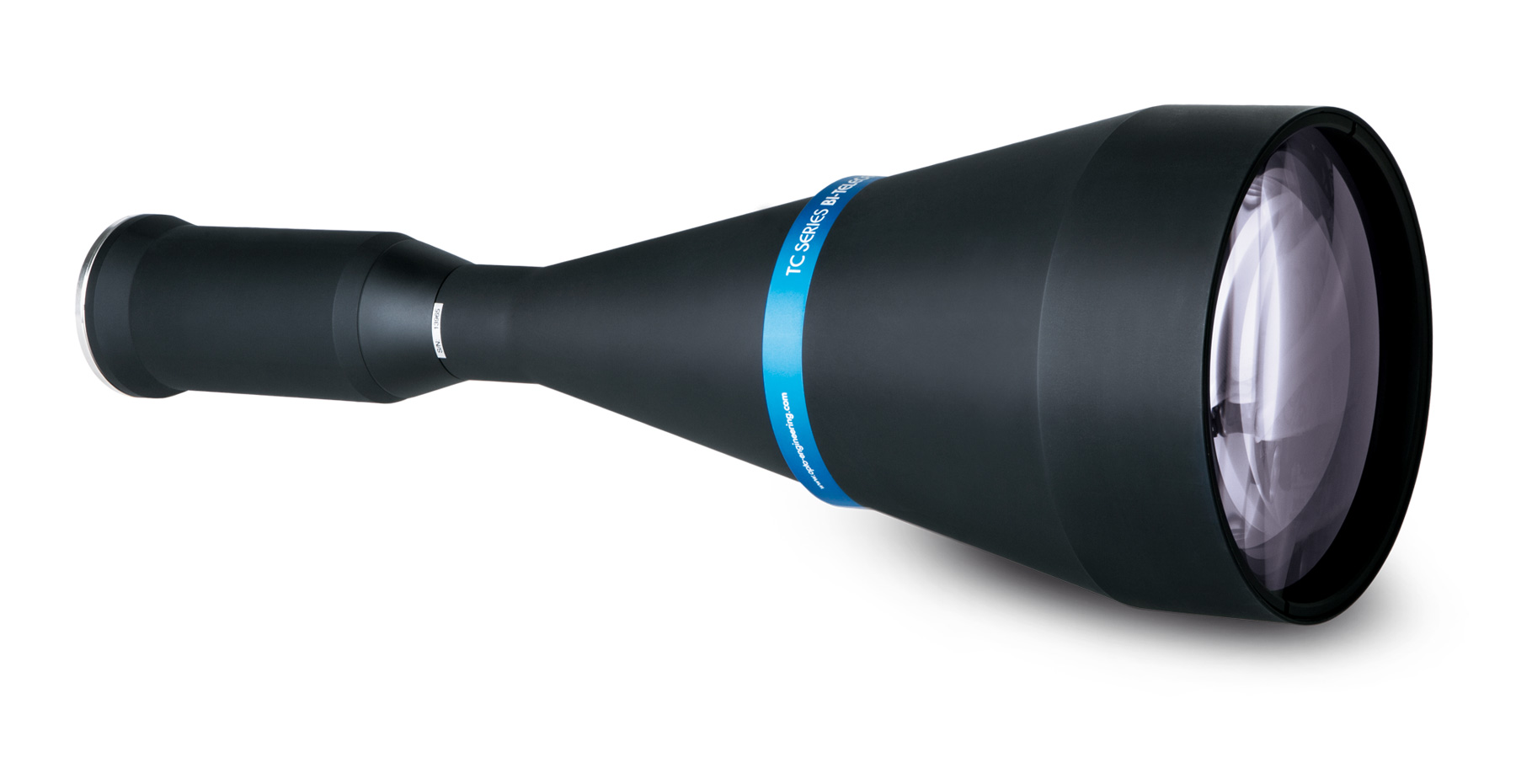

Opto Engingeering TC16M telecentric lenses

	Main optical specifications			Object field of view			Advanced optical specifications					Mechanical specifications
Part number	Mag.	Image circle diameter	Max sensor size	Line 8k-5µm	Full frame	CMV50000	Working distance	Working ƒ/N	Telecentricity typical (max)	Distortion typical (max)	Depth of field	Mount	Phase adjustment	Length	Front diameter
				40.80	36.00 x 24.00	36.43 x 27.62
	(x)	(mm)		mm	(mm x mm)	(mm x mm)	(mm)		(deg)	(%)	(mm)				(mm)
							1	2	3	4	5	7	8	9
TC16M012	3	43.3	35 mm Full Frame	13.6	12.00 x 8.00	12.14 x 9.21	57.8	18	< 0.03 (0.05)	< 0.03 (0.05)	0.2	F	No	378.7	37.7
TC16M012-Q	3	43.3	35 mm Full Frame	13.6	12.00 x 8.00	12.14 x 9.21	57.8	18	< 0.03 (0.05)	< 0.03 (0.05)	0.2	M58x0.75 FD 6.56	No	418.7	37.7
TC16M012-K	3	43.3	35 mm Full Frame	13.6	12.00 x 8.00	12.14 x 9.21	57.8	18	< 0.03 (0.05)	< 0.03 (0.05)	0.2	M58x0.75 FD 12.96	No	412.3	37.7
TC16M018	2	43.3	35 mm Full Frame	20.4	18.00 x 12.00	18.22 x 13.81	57.8	16	< 0.03 (0.05)	< 0.03 (0.05)	0.3	F	No	259.6	37.7
TC16M018-Q	2	43.3	35 mm Full Frame	20.4	18.00 x 12.00	18.22 x 13.81	57.8	16	< 0.03 (0.05)	< 0.03 (0.05)	0.3	M58x0.75 FD 6.56	No	299.5	37.7
TC16M018-K	2	43.3	35 mm Full Frame	20.4	18.00 x 12.00	18.22 x 13.81	57.8	16	< 0.03 (0.05)	< 0.03 (0.05)	0.3	M58x0.75 FD 12.96	No	293.1	37.7
TC16M036	1	43.3	35 mm Full Frame	40.8	36.00 x 24.00	36.43 x 27.62	102.6	16	< 0.03 (0.05)	< 0.02 (0.03)	1.3	F	No	309	61
TC16M036-Q	1	43.3	35 mm Full Frame	40.8	36.00 x 24.00	36.43 x 27.62	102.6	16	< 0.03 (0.05)	< 0.02 (0.03)	1.3	M58x0.75 FD 6.56	No	348.9	61
TC16M036-K	1	43.3	35 mm Full Frame	40.8	36.00 x 24.00	36.43 x 27.62	102.6	16	< 0.03 (0.05)	< 0.02 (0.03)	1.3	M58x0.75 FD 12.96	No	342.5	61
TC16M048	0.75	43.3	35 mm Full Frame	54.4	48.00 x 32.00	48.58 x 36.82	125.6	16	< 0.06 (0.10)	< 0.05 (0.10)	2.3	F	No	315.2	75
TC16M048-Q	0.75	43.3	35 mm Full Frame	54.4	48.00 x 32.00	48.58 x 36.82	125.6	16	< 0.06 (0.10)	< 0.05 (0.10)	2.3	M58x0.75 FD 6.56	No	355.2	75
TC16M048-K	0.75	43.3	35 mm Full Frame	54.4	48.00 x 32.00	48.58 x 36.82	125.6	16	< 0.06 (0.10)	< 0.05 (0.10)	2.3	M58x0.75 FD 12.96	No	348.8	75
TC16M056	0.641	43.3	35 mm Full Frame	63.65	56.16 x 37.44	56.84 x 43.09	148.6	16	< 0.04 (0.08)	< 0.04 (0.10)	3.2	F	No	338.5	80
TC16M056-Q	0.641	43.3	35 mm Full Frame	63.65	56.16 x 37.44	56.84 x 43.09	148.6	16	< 0.04 (0.08)	< 0.04 (0.10)	3.2	M58x0.75 FD 6.56	No	378.5	80
TC16M056-K	0.641	43.3	35 mm Full Frame	63.65	56.16 x 37.44	56.84 x 43.09	148.6	16	< 0.04 (0.08)	< 0.04 (0.10)	3.2	M58x0.75 FD 12.96	No	372.1	80
TC16M064	0.561	43.3	35 mm Full Frame	72.73	64.17 x 42.78	64.94 x 49.23	170.6	16	< 0.04 (0.08)	< 0.06 (0.15)	4.2	F	No	359.6	100
TC16M064-Q	0.561	43.3	35 mm Full Frame	72.73	64.17 x 42.78	64.94 x 49.23	170.6	16	< 0.04 (0.08)	< 0.06 (0.15)	4.2	M58x0.75 FD 6.56	No	399.6	100
TC16M064-K	0.561	43.3	35 mm Full Frame	72.73	64.17 x 42.78	64.94 x 49.23	170.6	16	< 0.04 (0.08)	< 0.06 (0.15)	4.2	M58x0.75 FD 12.96	No	393.2	100
TC16M080	0.463	43.3	35 mm Full Frame	88.12	77.75 x 51.84	78.69 x 59.65	197.3	16	< 0.03 (0.08)	< 0.09 (0.20)	6.2	F	No	406.4	116
TC16M080-Q	0.463	43.3	35 mm Full Frame	88.12	77.75 x 51.84	78.69 x 59.65	197.3	16	< 0.03 (0.08)	< 0.09 (0.20)	6.2	M58x0.75 FD 6.56	No	446.4	116
TC16M080-K	0.463	43.3	35 mm Full Frame	88.12	77.75 x 51.84	78.69 x 59.65	197.3	16	< 0.03 (0.08)	< 0.09 (0.20)	6.2	M58x0.75 FD 12.96	No	440	116
TC16M096	0.38	43.3	35 mm Full Frame	107.37	94.74 x 63.16	95.87 x 72.68	262.3	16	< 0.06 (0.08)	< 0.07 (0.15)	9.1	F	No	449.2	143
TC16M096-Q	0.38	43.3	35 mm Full Frame	107.37	94.74 x 63.16	95.87 x 72.68	262.3	16	< 0.06 (0.08)	< 0.07 (0.15)	9.1	M58x0.75 FD 6.56	No	489.1	143
TC16M096-K	0.38	43.3	35 mm Full Frame	107.37	94.74 x 63.16	95.87 x 72.68	262.3	16	< 0.06 (0.08)	< 0.07 (0.15)	9.1	M58x0.75 FD 12.96	No	482.7	143
TC16M120	0.289	43.3	35 mm Full Frame	141.18	124.57 x 83.04	126.06 x 95.56	331.6	16	< 0.05 (0.08)	< 0.05 (0.10)	15.8	F	No	538.1	180
TC16M120-Q	0.289	43.3	35 mm Full Frame	141.18	124.57 x 83.04	126.06 x 95.56	331.6	16	< 0.05 (0.08)	< 0.05 (0.10)	15.8	M58x0.75 FD 6.56	No	578.1	180
TC16M120-K	0.289	43.3	35 mm Full Frame	141.18	124.57 x 83.04	126.06 x 95.56	331.6	16	< 0.05 (0.08)	< 0.05 (0.10)	15.8	M58x0.75 FD 12.96	No	571.7	180
TC16M144	0.245	43.3	35 mm Full Frame	166.53	146.94 x 97.96	148.70 x 112.73	397.4	16	< 0.05 (0.08)	< 0.08 (0.20)	22	F	No	597.8	200
TC16M144-Q	0.245	43.3	35 mm Full Frame	166.53	146.94 x 97.96	148.70 x 112.73	397.4	16	< 0.05 (0.08)	< 0.08 (0.20)	22	M58x0.75 FD 6.56	No	637.7	200
TC16M144-K	0.245	43.3	35 mm Full Frame	166.53	146.94 x 97.96	148.70 x 112.73	397.4	16	< 0.05 (0.08)	< 0.08 (0.20)	22	M58x0.75 FD 12.96	No	631.3	200
TC16M192	0.187	43.3	35 mm Full Frame	218.18	192.51 x 128.34	194.82 x 147.69	457.5	16	< 0.06 (0.08)	< 0.05 (0.10)	37.7	F	Yes	741.6	260
TC16M192-Q	0.187	43.3	35 mm Full Frame	218.18	192.51 x 128.34	194.82 x 147.69	457.5	16	< 0.06 (0.08)	< 0.05 (0.10)	37.7	M58x0.75 FD 6.56	Yes	781.5	260
TC16M192-K	0.187	43.3	35 mm Full Frame	218.18	192.51 x 128.34	194.82 x 147.69	457.5	16	< 0.06 (0.08)	< 0.05 (0.10)	37.7	M58x0.75 FD 12.96	Yes	775.1	260
TC16M240	0.15	43.3	35 mm Full Frame	272	240.00 x 160.00	242.88 x 184.12	542.8	16	< 0.06 (0.08)	< 0.08 (0.15)	58.7	F	Yes	898.8	322
TC16M240-Q	0.15	43.3	35 mm Full Frame	272	240.00 x 160.00	242.88 x 184.12	542.8	16	< 0.06 (0.08)	< 0.08 (0.15)	58.7	M58x0.75 FD 6.56	Yes	938.7	322
TC16M240-K	0.15	43.3	35 mm Full Frame	272	240.00 x 160.00	242.88 x 184.12	542.8	16	< 0.06 (0.08)	< 0.08 (0.15)	58.7	M58x0.75 FD 12.96	Yes	932.3	322
TC16M308	0.116	43.3	35 mm Full Frame	351.72	310.34 x 206.90	314.07 x 238.09	500	8	< 0.10 (0.15)	< 0.10 (0.15)	49	F	Yes	1029.9	417
TC16M308-Q	0.116	43.3	35 mm Full Frame	351.72	310.34 x 206.90	314.07 x 238.09	500	8	< 0.10 (0.15)	< 0.10 (0.15)	49	M58x0.75 FD 6.56	Yes	1069.8	417
TC16M308-K	0.116	43.3	35 mm Full Frame	351.72	310.34 x 206.90	314.07 x 238.09	500	8	< 0.10 (0.15)	< 0.10 (0.15)	49	M58x0.75 FD 12.96	Yes	1062.4	417

Notes

Working distance: distance between the front end of the mechanics and the object. Set this distance within ±% of the nominal value for maximum resolution and minimum distortion.
Working f-number (wf/N): the real f-number of a lens in operating conditions.
Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 5.5 µm.
Object side, calculated with the Rayleigh criterion with λ= 520 nm
FD stands for Flange Distance (in mm), defined as the distance from the mounting flange (the "metal ring" in rear part of the lens) to the camera detector plane.
Indicates the availability of an integrated camera phase adjustment feature.
Measured from the front end of the mechanics to the camera flange.
