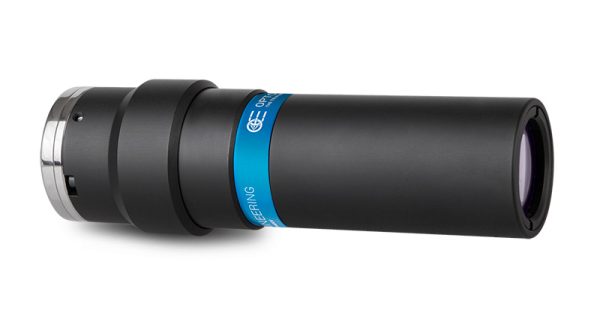

Opto Engineering TC2MHR telecentric lenses are designed for sensors up to 1". TC2MHR lenses feature high resolution, low distortion, and consistent image quality at a great performance-to-price ratio. They also provide an optimal solution for advanced metrology applications that require high resolution and precision.
Built for industrial environments with their compact size and robust design, these telecentric lenses can be easily integrated into industrial machine vision applications. In addition, there's a set screw located in the eyepiece that makes camera phase adjustments easy.
Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens for your industrial machine vision applications.
| Get Quote |
Part number |
Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | Data Sheet |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mag. | Image circle diameter |
Max sensor size |
1/3” | 1/2” | 2/3” | Working distance |
Working ƒ/N |
Telecentricity typical (max) |
Distortion typical (max) |
Depth of field |
Mount | Length | Front diameter |
|||
| 8.50 x 7.09 | 11.35 x 7.13 | 14.19 x 7.51 | ||||||||||||||
| (x) | (mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm) | (deg) | (%) | (mm) | (mm) | (mm) | ||||||
| 1 | 2 | 3 | 4 | 5 | 8 | |||||||||||
 | TC2MHRP016-C | 0.768 | 16 | 1" | 11.07 x 9.23 | 14.78 x 9.28 | 18.48 x 9.78 | 43.1 | 16 | <0.08 (0.10) | <0.04 (0.10) | 1.4 | C | 142.4 | 37.7 |  |
| TC2MHRP024-C | 0.509 | 16 | 1" | 16.70 x 13.93 | 22.30 x 14.01 | 27.88 x 14.75 | 67.2 | 11 | <0.08 (0.10) | <0.04 (0.10) | 2.2 | C | 167.4 | 44 | |
| TC2MHRP036-C | 0.354 | 16 | 1" | 24.01 x 20.03 | 32.06 x 20.14 | 40.08 x 21.21 | 102.6 | 11 | <0.08 (0.10) | <0.08 (0.10) | 4.5 | C | 197.7 | 61 | |
| TC2MHRP048-C | 0.267 | 16 | 1" | 31.84 x 26.55 | 42.51 x 26.70 | 53.15 x 28.13 | 132.9 | 8 | <0.08 (0.10) | <0.08 (0.10) | 5.8 | C | 233.7 | 75 | |
| TC2MHRP056-C | 0.228 | 16 | 1" | 37.28 x 31.10 | 49.78 x 31.27 | 62.24 x 32.94 | 157.8 | 8 | <0.04 (0.10) | <0.05 (0.10) | 8 | C | 256.6 | 80 | |
| TC2MHRP064-C | 0.2 | 16 | 1" | 42.50 x 35.45 | 56.75 x 35.65 | 70.95 x 37.55 | 181.9 | 8 | <0.04 (0.10) | <0.05 (0.10) | 10.4 | C | 278.2 | 100 | |
| TC2MHRP080-C | 0.16 | 16 | 1" | 53.13 x 44.31 | 70.94 x 44.56 | 88.69 x 46.94 | 226.8 | 8 | <0.04 (0.10) | <0.05 (0.10) | 16.2 | C | 323.9 | 116 | |
| TC2MHRP096-C | 0.136 | 16 | 1" | 62.50 x 52.13 | 83.46 x 52.43 | 104.34 x 55.22 | 278.6 | 8 | <0.05 (0.10) | <0.07 (0.10) | 22.4 | C | 365.2 | 143 | |
| TC2MHRP120-C | 0.104 | 16 | 1" | 81.73 x 68.17 | 109.13 x 68.56 | 136.44 x 72.21 | 334.6 | 8 | <0.07 (0.10) | <0.07 (0.10) | 38.3 | C | 451.3 | 180 | |
| TC2MHRP144-C | 0.089 | 16 | 1" | 95.51 x 79.66 | 127.53 x 80.11 | 159.44 x 84.38 | 396 | 8 | <0.05 (0.10) | <0.05 (0.10) | 52.3 | C | 510.8 | 200 | |
| TC2MHRP192-C | 0.067 | 16 | 1" | 126.87 x 105.82 | 169.40 x 106.42 | 211.79 x 112.09 | 527.6 | 8 | <0.05 (0.10) | <0.04 (0.10) | 92.2 | C | 651.2 | 260 | |
| TC2MHRP240-C | 0.053 | 16 | 1" | 160.38 x 133.77 | 214.15 x 134.53 | 267.74 x 141.70 | 492.8 | 8 | <0.05 (0.10) | <0.04 (0.10) | 147.4 | C | 790.6 | 322 | |
