Opto Engineering TCLWD telecentric lenses are designed for sensors up to 2/3" to meet the demanding requirements of electronic and semiconductor Automated Optical Inspection (AOI), and tool presetting machines.

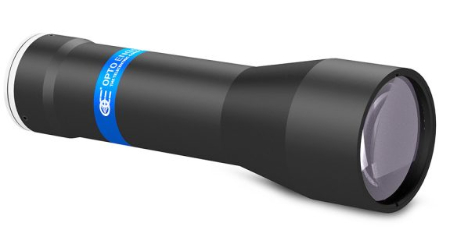

TCLWD telecentric lenses deliver exceptional optical resolution, high telecentricity, and minimal distortion at a long working distance of 132mm. This extra distance is beneficial for machine vision applications with illumination components, pick-up tools, or for environments that require a safe distance from potentially hazardous production processes.
The numerical aperture is large enough to leverage the capabilities of high-resolution cameras with a small pixel size making these telecentric lenses an ideal solution for a broad array of general-purpose 2D measurement systems.
Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens for your industrial machine vision applications.
| Get Quote |
Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | Data Sheet | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part number | Mag. | Image circle diameter | Max sensor size | 1/3” | 1/1.8” | 2/3” | Working distance | Working ƒ/N | Telecentricity typical (max) | Distortion typical (max) | Depth of field | Mount | Phase adjustment | Length | Front diameter | ||
| 4.80 x 3.60 | 7.13 x 5.33 | 8.50 x 7.09 | |||||||||||||||
| (x) | (mm) | (mm × mm) | (mm × mm) | (mm × mm) | (mm) | (deg) | (%) | (mm) | (mm) | (mm) | |||||||
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||||||
 | TCLWD050 | 0.5 | 11 | 2/3" | 9.60 x 7.20 | 14.26 x 10.66 | 17.00 x 14.18 | 132.6 | 12 | < 0.04 (0.06) | < 0.1 (0.2) | 2.5 | C | Yes | 130.7 | 37.7 |  |
| TCLWD066 | 0.66 | 11 | 2/3" | 7.27 x 5.45 | 10.80 x 8.08 | 12.88 x 10.74 | 132.8 | 12 | < 0.04 (0.06) | < 0.1 (0.2) | 1.4 | C | Yes | 149.3 | 37.7 | |
| TCLWD075 | 0.75 | 11 | 2/3" | 6.40 x 4.80 | 9.51 x 7.11 | 11.33 x 9.45 | 132.6 | 12 | < 0.04 (0.06) | < 0.1 (0.2) | 1.1 | C | Yes | 155 | 37.7 | |
| TCLWD100 | 1 | 11 | 2/3" | 4.80 x 3.60 | 7.13 x 5.33 | 8.50 x 7.09 | 132.3 | 12 | < 0.04 (0.06) | < 0.05 (0.10) | 0.6 | C | Yes | 126 | 37.7 | |
| TCLWD150 | 1.5 | 11 | 2/3" | 3.20 x 2.40 | 4.75 x 3.55 | 5.67 x 4.73 | 132.3 | 16 | < 0.04 (0.06) | < 0.05 (0.10) | 0.4 | C | Yes | 140.4 | 37.7 | |
| TCLWD250 | 2.5 | 11 | 2/3" | 1.92 x 1.44 | 2.85 x 2.13 | 3.40 x 2.84 | 132.3 | 20 | < 0.04 (0.06) | < 0.05 (0.10) | 0.2 | C | Yes | 157 | 37.7 | |
| TCLWD350 | 3.5 | 11 | 2/3" | 1.37 x 1.03 | 2.04 x 1.52 | 2.43 x 2.03 | 132.3 | 24 | < 0.04 (0.06) | < 0.05 (0.10) | 0.1 | C | Yes | 174.7 | 37.7 | |
