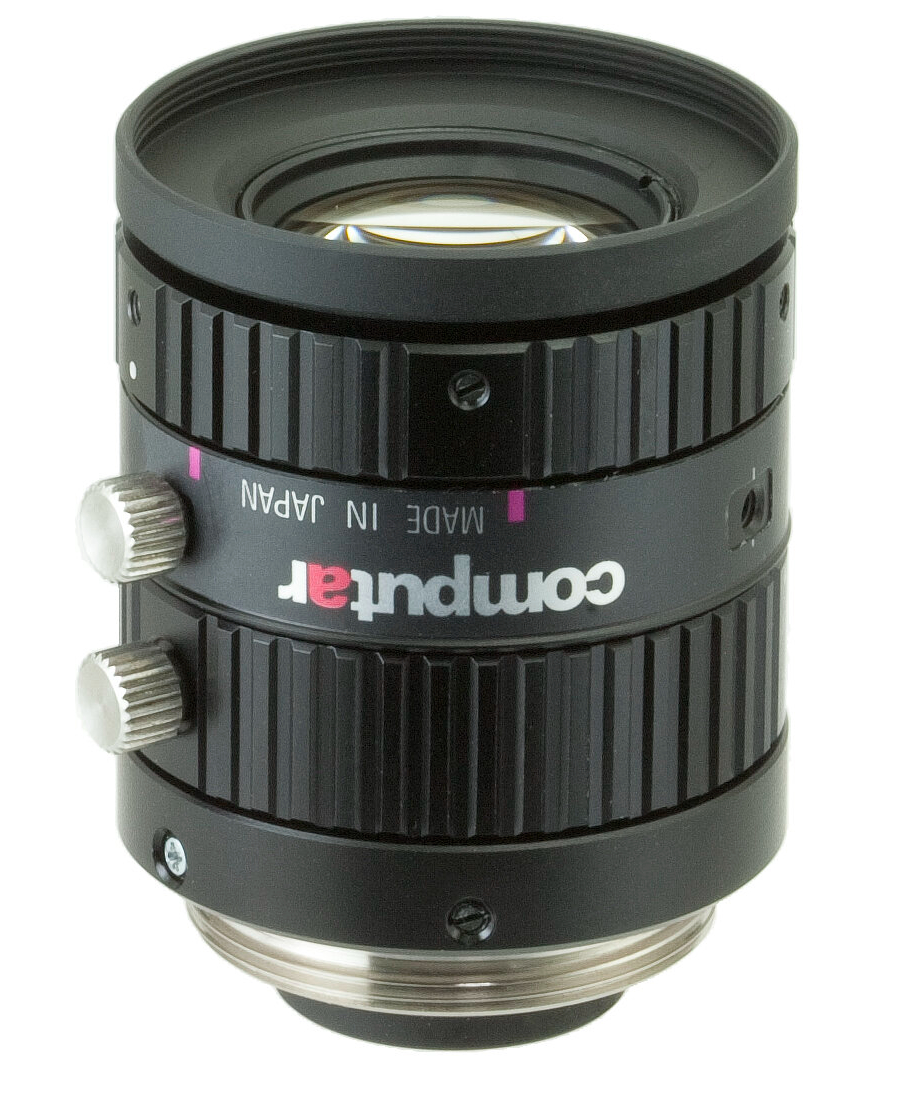

The Computar M1228-MPX is a 12mm C-mount lens for Type 16 megapixel cameras with a M30.5x0.5 filter size, and 0.14% distortion. The M1228-MPX 2/3" lens works in a wide range of working distance from 0.1 meters to infinity.
The Computar MPX C-mount ruggedized lens for Type 16 megapixel cameras are high resolution C-mount lenses built for harsh industrial environments. They feature an extraordinarily precise focus adjustment with a rotation angle that's 5 times greater than most lenses. The floating mechanism enables the Computar MPX high performance lenses to work in distances from close-up to long distances.
	Manufacturer: Computar/CBC
	Manufacturer PN: M1228-MPX
	Focal Length: 12mm
	Quality: 16MP
	Sensor Size: 2/3"
	Lens Mount: C
	F Stop: 2.8
	M.O.D. (m): 0.1
	Dimensions (LxW mm): 35.95x31.8

	Iris type: smooth
	Filter size: M30.5 P=0.5mm
	Distortion: 0.14%
	Resolution: 16MP
