Computar MPX 2/3" C-mount Lens for Type 16 Megapixel cameras

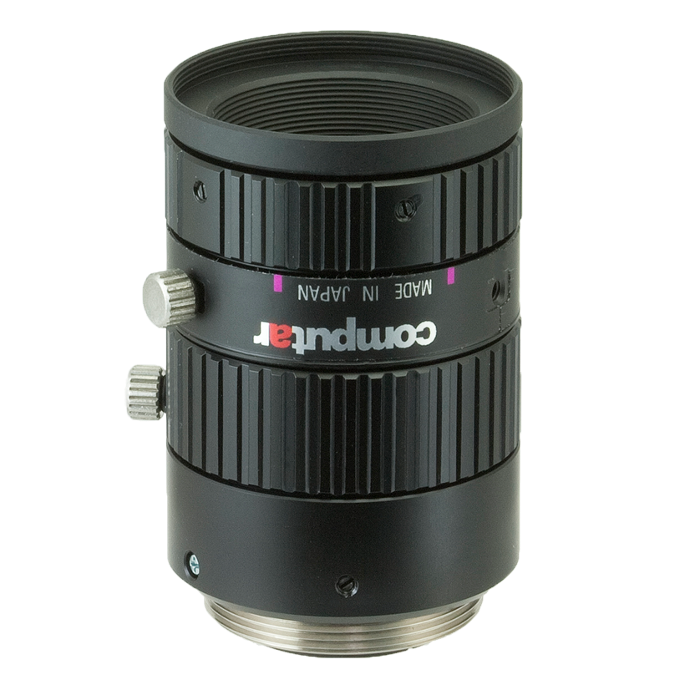

Computar/CBC M5028-MPX 16 Megapixel 50mm lens


The Computar M5028-MPX is a 50mm C-mount lens for Type 16 megapixel cameras with a M30.5x0.5 filter size, and 0.04% distortion. The M5028-MPX lens works in a wide range of working distance from 0.2 meters to infinity.

The Computar MPX C-mount ruggedized lens for Type 16 megapixel cameras are high resolution C-mount lenses built for harsh industrial environments. They feature an extraordinarily precise focus adjustment with a rotation angle that's 5 times greater than most lenses. The floating mechanism enables the Computar MPX high performance lenses to work in distances from close-up to long distances.

Computar/CBC M5028-MPX lens
get a quote for this product

Manufacturer: Computar/CBC
Manufacturer PN: M5028-MPX
Focal Length: 50mm
Quality: 16MP
Sensor Size: 2/3"
Lens Mount: C
F Stop: 2.8
M.O.D. (m): 0.2
Dimensions (LxW mm): 46x31.8
Iris type: smooth
Filter size: M30.5x0.5
Distortion: 0.04%
Resolution: 16MP


Datasheet
