Kowa LM-JC5MC 2/3" 5MP Ultra Compact C-mount Lenses
Kowa LM16JC5MC-WP 5 Megapixel 16mm lens

The Kowa LM16JC5MC-WP 2/3" lens is a 16mm 5 megapixel waterproof lens with -0.09% distortion, and 160/100 resolution.

The LM-JC5MC-WP 2/3" 5MP Ultra Compact C-mount lenses are one of the smallest and lightest 5 megapixel lenses. They are suitable for sensors with a pixel sizes from 3.5 µm and up including Sony IMX250, IMX252, IMX264, IMX265 sensors. Their mechanical design protects the lens from vibration and shocks that occur in industrial environments. The F-stop settings can easily be changed with the with a click-type iris mechanism. The LM-JC5MC 2/3" 5MP lens series includes waterproof lenses that are designated with "-WP".

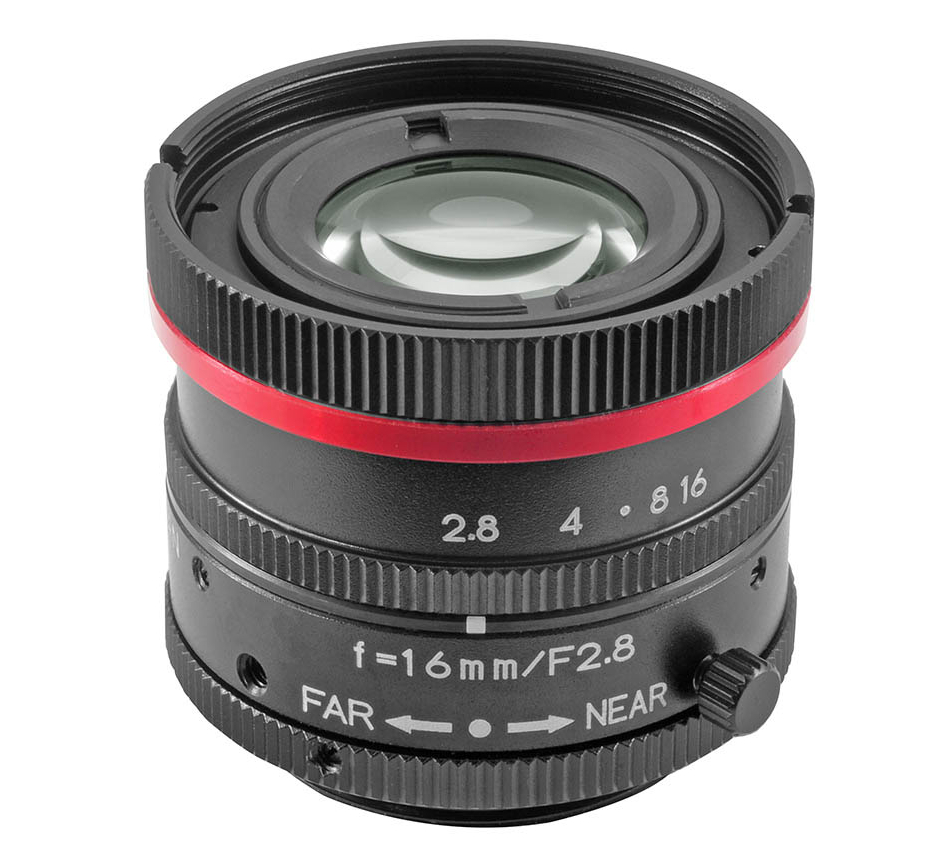

Kowa LM16JC5MC-WP lens
get a quote for this product

Manufacturer: Kowa
Manufacturer PN: LM16JC5MC-WP
Focal Length: 16mm
Quality: 5MP
Sensor Size: 2/3"
Lens Mount: C
F Stop: 2.8
M.O.D. (m): 0.2
Dimensions (LxW mm): 33x27.1
Iris type: Smooth
Filter size: M30.5 x P0.5
Distortion: -0.09%
Resolution: 160/100


Datasheet
Distortion
MTF
Relative Illumination
Transmission
