Kowa LM-M42, 2", 50MP, M42 Mount Lenses
Kowa LM18VM42 50 Megapixel 18mm lens

The Kowa LM18VM42 is a 18mm 50 megapixel lens with a M55x0.75 filter size, 1.25 distortion, and 160/100 resolution.

The LM-M42 50MP 2" M42 mount lens family features for sensors with pixel sizes from 3.1µm., designed for 2" and aps-c format sensors., rated for 50 megapixel and 8k-class machine vision cameras., Ø32mm image circle for large-format area scan cameras., m42 lens mount., high magnification design with close focusing capability., optional mount adapters can modify flange back distance., suitable for sony imx342, cmosis cmv12000, cmv20000, cmv50000 and similar sensors..

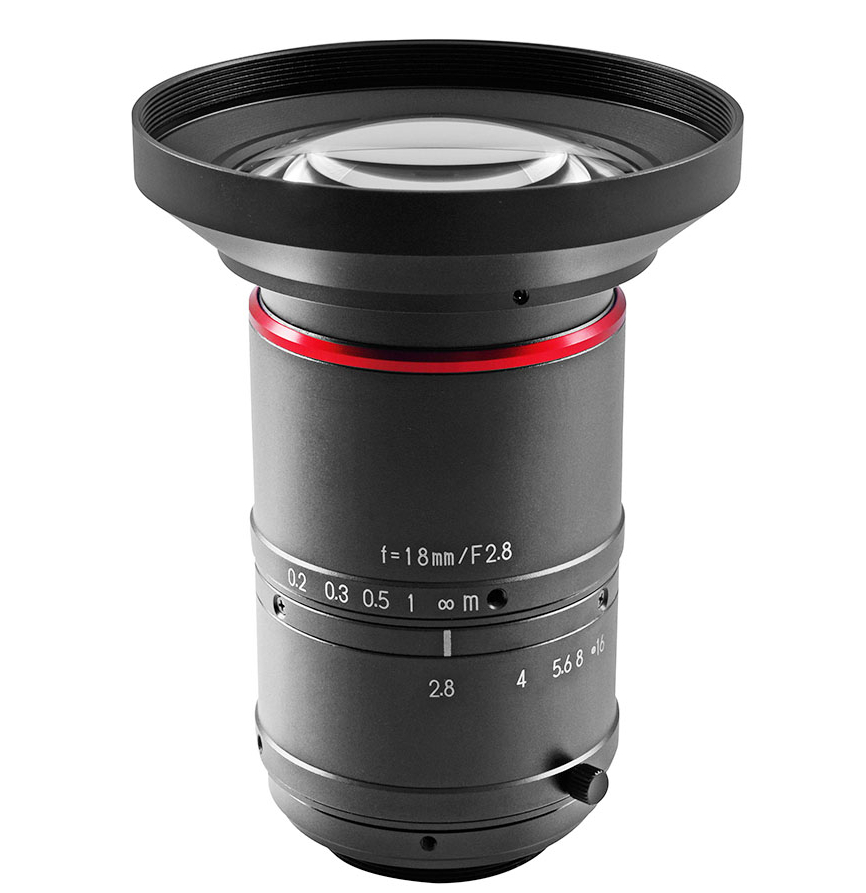

Kowa LM18VM42 lens
get a quote for this product

Manufacturer: Kowa
Manufacturer PN: LM18VM42
Focal Length: 18mm
Quality: 50MP
Sensor Size: 2"
Lens Mount: M42x1
F Stop: 2.8
M.O.D. (m): .1
Dimensions (LxW mm): 79x101.1
Iris type: Smooth
Filter size: M55x0.75
Distortion: 1.25
Resolution: 160/100


Datasheet
Distortion
MTF
