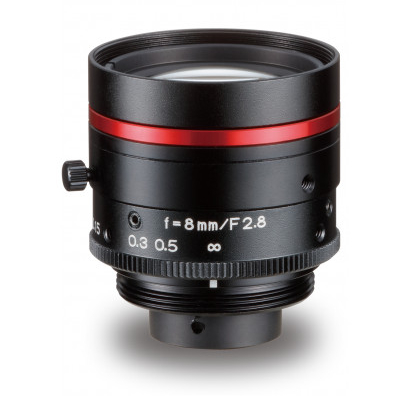

LM-JC5MC 2/3" 5MP Ultra Compact C-mount lenses are one of the smallest and lightest 5 megapixel lenses. They are suitable for sensors with a pixel sizes from 3.5 µm and up including Sony IMX250, IMX252, IMX264, IMX265 sensors. Their mechanical design protects the lens from vibration and shocks that occur in industrial environments. The F-stop settings can easily be changed with the with a click-type iris mechanism. The LM-JC5MC 2/3" 5MP lens series includes waterproof lenses that are designated with "-WP".
Manufacturer: Kowa
Manufacturer PN: LM8JC5MC
Focal Length: 8mm
Quality: 5MP
Sensor Size: 2/3"
Lens Mount: C
F Stop: 2.8
M.O.D. (m): 0.15
Dimensions (LxW mm): 32X27
Iris type: Smooth
Filter size: M30.5x0.5
Distortion: -0.85%
Resolution: 160/100
Kowa JC5MC Ultra Compact Lenes
JC5MC-WP Ultra-Compact Waterproof Lens
