The ML-10040-62M35 is designed for large format sensors up to 67mm format sensors with 3.8µm/130lp/mm resolving power and 4.5µm pixel size. It features a 60mm focal length, -0.37% distortion, and .27 meter minimum object distance.

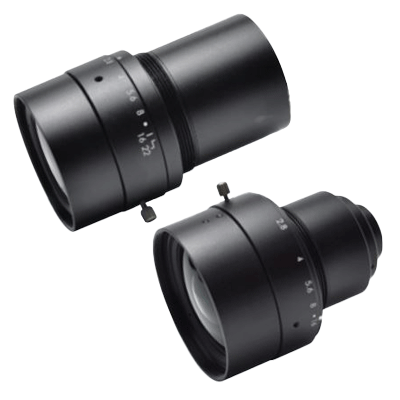

With support for 35mm to 82mm wide line scan sensors, the Moritex ML-FF Line Scan / Large format lenses offer M39/M42/M58/M72/M90/M95-Mount adapters via ML-TUBE, fixed focal lengths provide excellent image sharpness, low distortion, and Vis or Vis/NIR AR coating for high performance line scan imaging applications. All lenses have filter threads and screw locking aperture and focus rings.
