Schneider Optics TOURMALINE 1.3" Lenses
TOURMALINE 2.0/20mm TFL-mount Lens / TOURMALINE 2.0/20mm TFL

The Schneider Optics 23-1098778 TOURMALINE 2.0/20mm 1.3" TFL-mount Lens is a 20mm 12 megapixel lens with a M35.5x0.5 filter size, and -0.1% distortion.

TOURMALINE 1.3" Lenses are available as C-mount or TFL-mount lenses. They feature a compact design, high resolution down to 2.4 µm pixel size, and are visibly corrected and broadband coated for use in the 400-1000nm (Visible through Near IR spectrum) range. The optical design with a low chief ray angle prevents shading and supports all generations of SONY Pregius sensors.

Schneider Optics TOURMALINE 2.0/20mm TFL lens
get a quote for this product

Manufacturer: Schneider Optics
Manufacturer PN: TOURMALINE 2.0/20mm TFL
Focal Length: 20mm
Quality: 12MP
Sensor Size: 1.3"
Lens Mount: TFL
F Stop: 2.0
M.O.D. (m): .2
Dimensions (LxW mm): 48x62.9
Weight (grams): 450
Iris type: smooth
Filter size: M35.5x0.5
Distortion: -0.1%
Resolution: 12MP


Datasheet

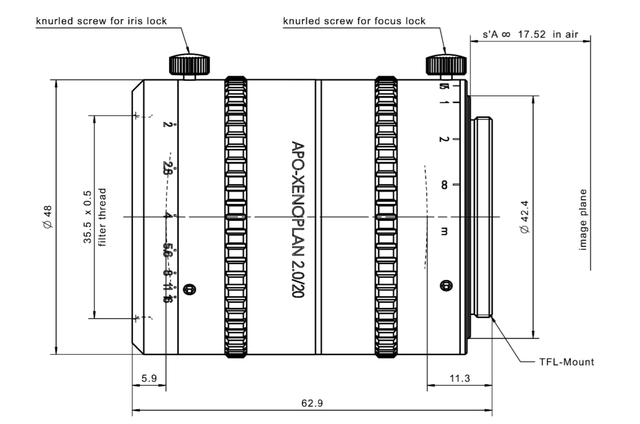

Lens Outline Drawing
