Backlights create contrast against a bright background to produce uniform illumination and minimize reflections of the object. They are commonly used to measure objects, or verify the presence or absence of holes or gaps in objects. Effilux LED Backlights are ideal for numerous machine vision applications such as pick-and-place, inspection of transparent and translucent materials like glass and fabric, and verifying fluid fill-level in bottles. Effilux's selection of backlights includes a backlight in a compact bar, and waterproof LED backlights with IP67 or IP69K protection.
See the entire selection of Effilux LED lighting for machine vision.

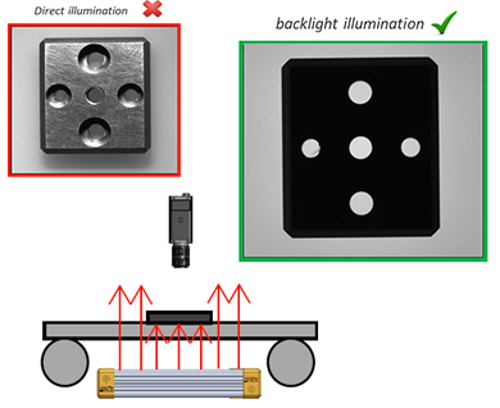

Direct illumination vs backlight illumination

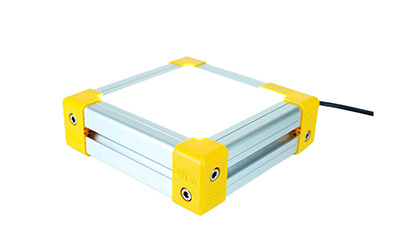

The Effilux EFFI-BL LED backlight provides uniform illumination (greater than 90%) with high intensity and remarkable contrast. EFFI-BL backlights are easily customized, and feature an anti-reflection system to minimize glare, and a dimming controller for precise light intensity control. The optional collimation film collimates the light and reduces the emission angle.

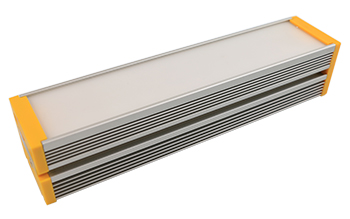

The Effilux EFFI-Flex-BL is a compact LED bar & backlight. For more information the EFFI-Flex-BL LED bar / backlight on the bar lights page.

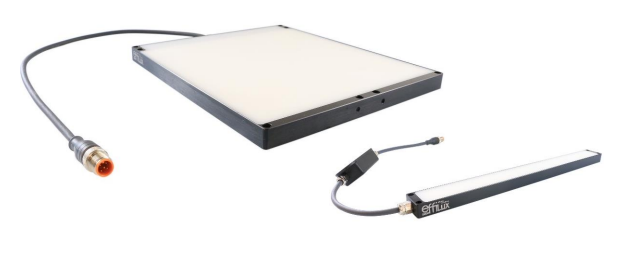

The Effilux EFFI-SBL LED backlight is a small backlight that features IP67 water and dust protection for harsh environments, an anti-reflection coating to minimize glare, and a compact space-saving design with thin edges that are only 15mm thick. They provide uniform illumination (greater than 90%), and are available in a number of sizes from 25mm x 25mm to 200mm x 200mm. The dimming driver is available either built-in or used with a standard M12 cable.

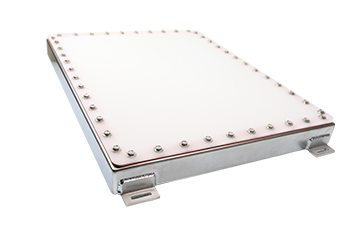

The EFFI-BL IP69K LED backlight is a large powerful backlight that provides intense and uniform illumination greater than 90%. Built with IP69K protection, this LED backlight is designed specifically for harsh industrial environments such as the food and medical industries. The stainless steel body withstands high temperatures and high pressure water wash-downs from any direction.
