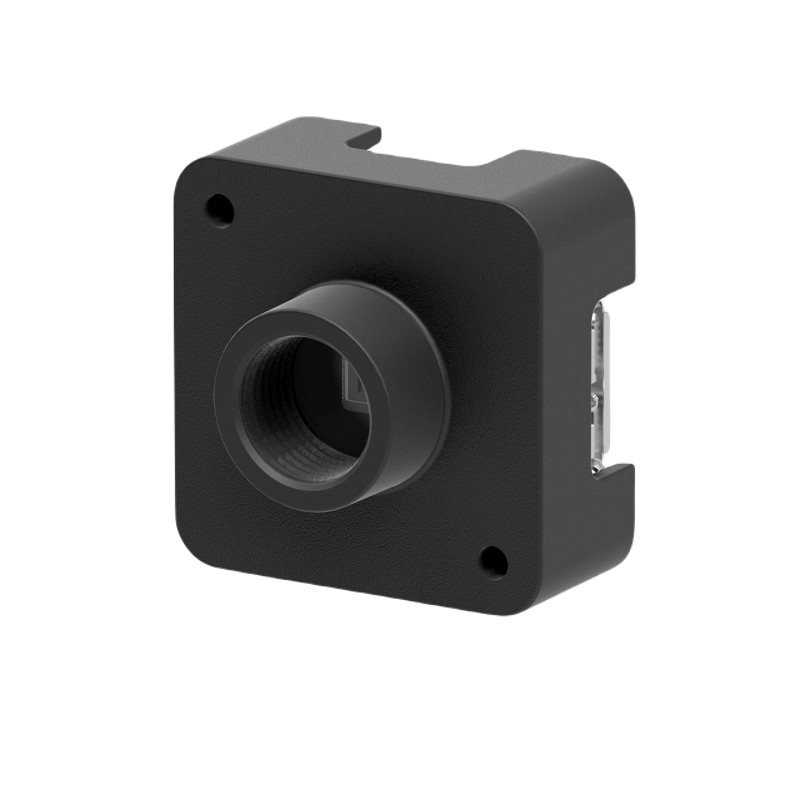

The IDS Imaging uEye+ U3-34F1XLS Rev.1.2 USB3 board-level camera features a Sony IMX675 1/3" rolling shutter 5 megapixel CMOS sensor with a 40 fps frame rate at full 2592x1960 resolution, 2 µm pixel size, an S-mount lens mount, and weighs only 10 grams. The U3-34F1XLS camera is available in color or monochrome.

IDS XLS USB3 board-level cameras feature a USB3 interface that transmits data a 5 Gbps, Sony or ON Semi sensors, a C / CS-mount lens mount, S-mount lens mount or without a lens mount in color, monochrome or NIR. Their extremely small size and lightweight (from 3 to 20 grams) make them ideal for embedded systems. These high quality, low-cost cameras are an attractive option for budget conscious industrial applications, and multi-camera systems. They are easy to install and integrate into new or existing industrial machine vision systems.

Because XLS cameras communicate via the USB3 Vision protocol (U3V) and are 100 percent GenICam compliant, they can be easily integrated into 3rd party compliant software or used with the IDS Peak Software Development Kit (SDK). All IDS cameras are backed by a 3 year warranty.
