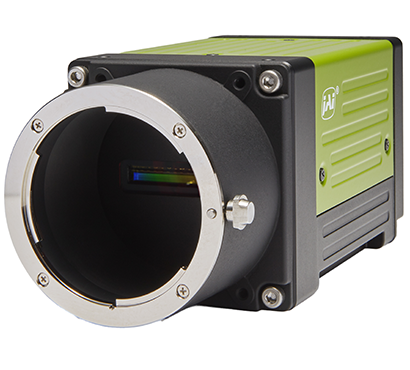

JAI SW-4000TL-SFP
The JAI Sweep SW-4000TL-SFP line scan camera features a trilinear sensor that ensures true color imaging, a 66 kHz line rate, and 4K (4096x3) resolution. The interface is an enhanced Small Form-factor Pluggable optical interface (SFP+) that runs on a 10GigE network configuration for high-speed data transmission. The SW-4000TL-SFP is available with an F-mount or M42 lens mount. Sweep trilinear cameras are suitable for a wide range of industrial applications that require high-quality color differentiation, including wood inspection, produce sorting, and barcode reading.
JAI Sweep monochrome and trilinear line scan cameras are available in a range of configurations with resolutions from 2K to 8K, and line rates up to 277 kHz.
JAI Sweep Series
Monochrome and Trilinear Line Scan Cameras Features
SW-4000TL-SFP Camera Features
| Manufacturer: | JAI | Model: | SW-4000TL-SFP | Total Pixels: | 12,288 |
| Resolution: | 4096 (h) 3 (v) | Sensor Size: | 30.7mm | Color/B & W: | Color |
| kHz: | 66 | Sensor Type: | CMOS | Sensor Device: | Proprietary |
| Pixel Size(µm): | 7.5(h) 7.5(v) | A/D Bits: | 10 | Shutter Speed: | 3 µs to 15.015 µs |
| Interface: | 10GigE | Voltage(VDC): | 10-25V | Power(watts): | 8 |
| Lens Mount: | F or M-42 | Shutter Type: | Global | Weight(grams): | 340 M42 mount / 410 F-mount |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | call |
