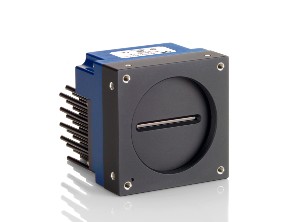

Camera Link HS Fiber Line scan camera Teledyne DALSA ML-FM-08K30H Teledyne DALSA ML-FM-08K30H
Camera Link HS Fiber Camera
DALSA Proprietary Sensor
8192x4 Resolution
Line Scan Camera

get a quote for this product

Teledyne DALSA Linea ML-FM-08K30H monochrome line scan camera uses a DALSA Proprietary CMOS sensor and Camera Link HS LC Fiber interface to deliver 8,192x4 multiline at 140/280kHz scan rate. Features include multi-array charge-domain CMOS TDI, mono/HDR and multifield modes of operation, outstanding sensitivity, low-noise, and high dynamic range in very compact housings, this camera allows scientists and engineers to image objects/subjects in motion with highest resolution and accurate in the industry.

Linea, Linea2, Linea, Linea Lite, Linea ML Line Scan Cameras Features

  • 2K to 32K resolution
  • Up to 400 kHz scan rate, TurboDrive
  • RGB color, monochrome, NIR, and multispectral options
  • Low cost line scan models

ML-FM-08K30H Camera Features

  • Teledyne DALSA 8,192x4 multiline TDI line scan sensor
  • 140/280kHz scan rate
  • 72dB dynamic range
  • 18 DN/(nJ/cm²) responsivity (8-bit single plane)
Manufacturer: Teledyne DALSA Model: ML-FM-08K30H Total Pixels: 32,768
Resolution: 8192 (h) 4 (v) Sensor Size: 40.96mm Color/B & W: Monochrome
kHz: 140 Sensor Type: CMOS Sensor Device: DALSA Proprietary
Pixel Size(µm): 5(h) 5(v) A/D Bits: 12 Shutter Speed: 3.2µs to 1400µs
Interface: Camera Link HS Fiber Voltage(VDC): 12-24V Power(watts): 15
Lens Mount: M58 Shutter Type: call Weight(grams): 500
S/N Ratio(dB): call External Trigger: Yes Dimensions(mm): 85Lx76Wx76H
