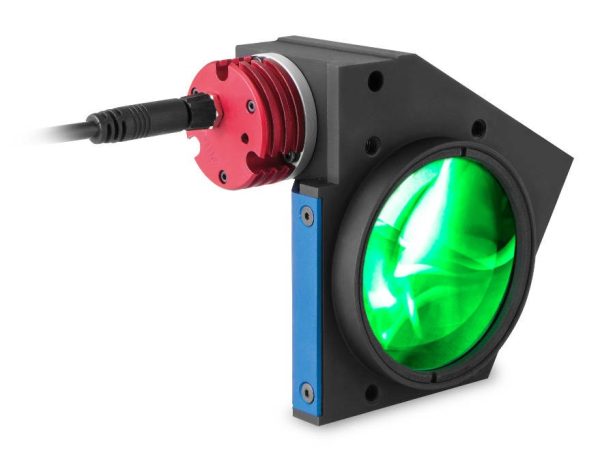

Opto Engineering LTCLHP CORE Illuminators
Ultra compact telecentric illuminators

The LTCLHP CORE ultra compact telecentric illuminators are up to 60% smaller than traditional collimated illuminators. These ultra compact telecentric illuminators can significantly reduce machine size and easily integrate true collimated illumination unlike common flat backlights, thereby improving system performance overall.

Due to their innovative design they can be easily fitted into existing systems, mounted with or without clamps using any of the 4 sides, and angled in the optimal direction. LTCLHP CORE ultra compact telecentric illuminators also provide a cost savings for manufacturing, shipping, storage and system footprint.

• 60% smaller size with the same excellent optical performance
• Easily fitted into existing systems
• Mount using any of the 4 sides with or without clamps
• Better system performance compared to backlights
• Cost-effective due to smaller footprint, shipping and storage costs
• Well defined edges for excellent measurement results
• Less reflective than diffused lighting
• Homogeneity test report with measured values

Opto Engineering telecentric lenses include a wide variety of lenses for area and line scan cameras. Contact us if you would like help choosing the right lens and lighting for your industrial machine vision applications.
