The Gidel Proc1C10N-CXP12 is a high-performance 8-channel CXP-12 frame grabber with integrated FPGA-based AI processing, designed for high-throughput CoaXPress-12 applications requiring real-time FPGA image processing at extreme data rates for ultra-high bandwidth machine vision and multi-camera imaging systems.
Built on the Intel Stratix 10 NX FPGA for Next-Generation AI Vision Systems, this advanced FPGA CoaXPress frame grabber delivers up to 90 Gb/s aggregate data throughput, enabling real-time acquisition, processing, and analysis of high-resolution image streams. The Proc1C10N-CXP12, a complete FPGA image processing platform, features ultra-high-speed acquisition and real-time AI acceleration that delivers the required high bandwidth, low latency required by multi-camera systems.
Unlike conventional frame grabbers, the Gidel Proc1C10N-CXP12 FPGA CoaXPress frame grabber (and all Gidel FPGA frame grabbers) enable true inline / on-the-fly image processing, including advanced compression (JPEG, Lossless, and Quality+), HDR correction, dynamic image enhancement, and fully customizable FPGA pipelines. Gidel's innovative architecture allows high-speed data reduction and real-time processing while significantly reducing CPU load and system latency.
Gidel offers a full range of FPGA frame grabbers and vision platforms, from cost-effective off-the-shelf boards to high-performance, application-specific solutions supporting Camera Link, CoaXPress, and 10GigE Vision interfaces. To accelerate development, Gidel provides the InfiniVision and ProcFG SDKs, featuring comprehensive APIs, libraries, and graphical tools for FPGA image processing, compression, and multi-camera system design.
Contact us to explore Gidel's diverse frame grabber offerings and determine if a standard or custom-engineered solution is the ideal fit for your specific needs.
| Camera input | 8x CoaXPress-12 links 4x CoaXPress-12 links PoCXP |
|---|---|
| CoaXPress Version | CoaXPress 2.1 |
| Camera Input Connectors | 8x Micro-BNC |
| Supported down-connection speeds |
1.25 Gb/s | CXP-1 2.5 Gb/s | CXP-2 3.125 Gb/s | CXP-3 5 Gb/s | CXP-5 6.25 Gb/s | CXP-6 10 Gb/s | CXP-10 12.5 Gb/s | CXP-12 |
| Supported up-connection speeds |
20.83 Mbps (CXP-1 to CXP-6) 41.66 Mbps (CXP-10, CXP-12) |
| Maximum Stream Packet Size | 8,192 bytes |
| Additional Connectors |
Gidel PHS connector for daughterboards JTAG |
| Advanced Features |
On-the -fly selective ROI acquisition Link Aggregation mode Chunk Data |
| Image Formats |
Mono, Bayer, RGBA (8, 10, 12, 14 and 16 bits/color) RGB (8, 10 and 12 bits/color) |
| Max. Resolution |
Horizontal: 16 K pixels (64-bit) Vertical: 65 K lines |
| Maximum Acquisition Throughput | 80Gb/s |
| Compression & Image Enhancements | Compression Options:
.JPEG Lossless Quality+ Image Enhancements Options:
High Dynamic Range (HDR) correction
For more modular image-processing options Contact Us |
| Host Bus | PCIe x 16 Gen. 3 |
| On Board Memory | 8GB @ up to 300GB/s Sustain Throughput |
| Camera Types |
Area Line scan |
| Form Factor | Dual-slot, full-height half-length PCIe card |
| GPIO | 19 x GPIOs |
| Power | Up to 100W: Depends on user application and FPGA Type |
| Cooling | Passive cooling | Active cooling (fan) |
| MTBF | > Million hours (With Passive Cooling) |
| Temperature | Operating ambient air temperature: 0 - 55° C |
|---|---|
| Humidity |
Continuous Operation: 10 - 80% (non-condensing) Peak Operation: 10 - 90% (non-condensing) |
| Environmental Compliance |
RoHS Conflict Minerals ISO Reach |
| Modular Real-Time Image Processing |
Gidel FPGA flow can integrate advanced image processing algorithms, including:
Compression encoders: JPEG | Lossless | Quality+
High Dynamic Range (HDR) correction from a single exposure White Balance - Maintains color accuracy across variable lighting conditions Dynamic Luminance Balance - Preserves consistent brightness under changing illumination Morphological operations such as Open/Close using a round structuring element |
|---|---|
| User FPGA code | Users can integrate their own FPGA code with Gidel’s IPs |
| Carrier board |
Option for user or Gidel custom carrier us For customization services, contact Gidel |
| Camera Input | For configurations requiring more than 8 cameras, please contact us. | Memory Size | 16GB @ up to 512GB/s Sustain Throughput |
| Acquisition Rate | Up to 200Gb/s |
Contact us if you need a customized solution!
Grabbers SDK
Application Interfaces
Software Compatibility

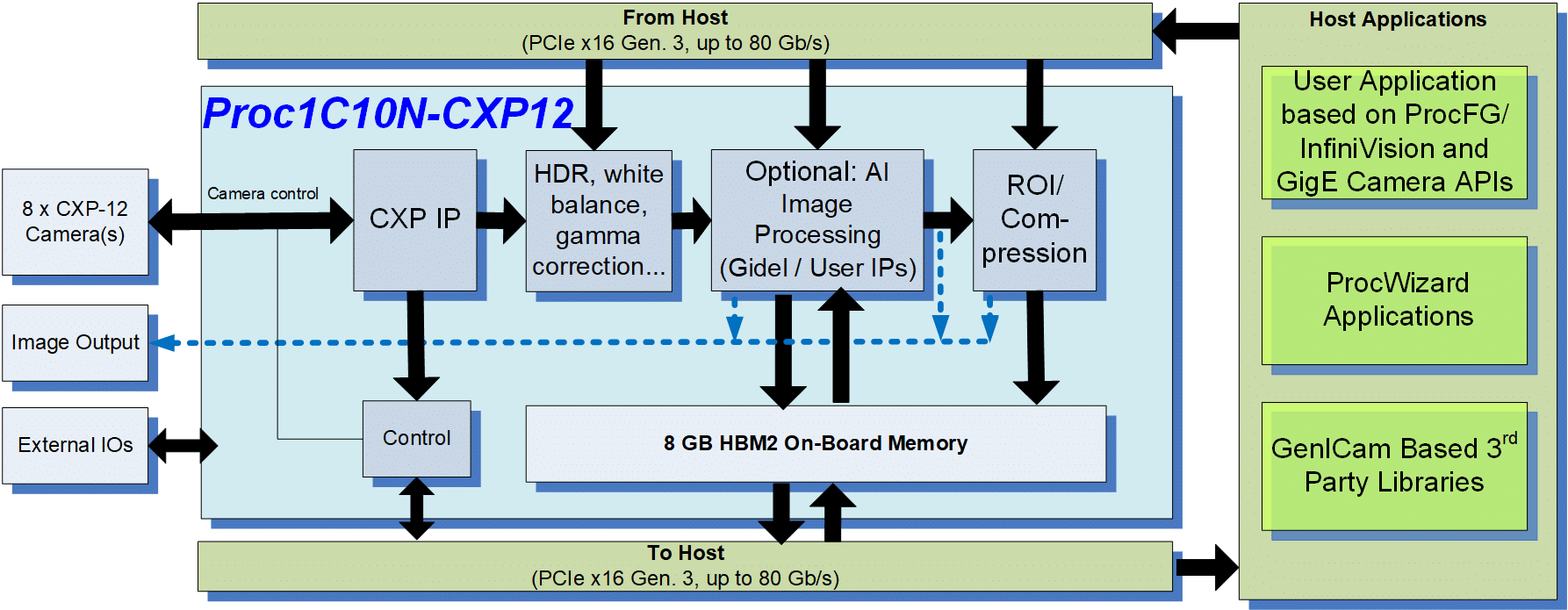

Example of a typical Proc1C10N-CXP12 CoaXPress 12 frame grabber acquisition and processing system
