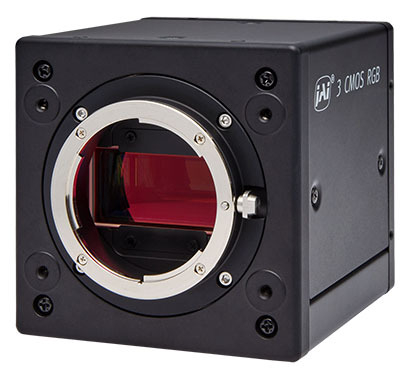

JAI SW-8000T-CXPA
The JAI SW-8000T-CXPA 8K CoaXPress prism-based industrial RGB color line scan camera features 3 separate imagers to capture the R/G/B spectrum simultaneously providing accurate color rendition, 8192x3 resolution, and a 3.75 µm x 5.78 µm pixel size. The SW-8000T-CXPA line scan camera transmits data at up to 49 kHz (49,000 line per second) over a fast plug-and-play CoaXPress CXP-12 interface, and also supports CXP-6 and CXP-3 configurations.
JAI Sweep+ line scan cameras are built with advanced prism optics providing high performance and precision for industrial color imaging line scan applications, and are available with CoaXPress, 10GigE or a Camera Link interface.
JAI Sweep High Performance Prism based Color Line Scan Cameras Features
SW-8000T-CXPA Camera Features
| Manufacturer: | JAI | Model: | SW-8000T-CXPA | Total Pixels: | 24,576 |
| Resolution: | 8192 (h) 3 (v) | Sensor Size: | 30.72 mm | Color/B & W: | Color |
| kHz: | 49 | Sensor Type: | CMOS | Sensor Device: | Proprietary |
| Pixel Size(µm): | 3.75(h) 5.78(v) | A/D Bits: | 10 | Shutter Speed: | 3 µs &sim 15.149ms |
| Interface: | CoaXPress | Voltage(VDC): | 10-25V | Power(watts): | 8 |
| Lens Mount: | F or M52 | Shutter Type: | Global | Weight(grams): | 790 |
| S/N Ratio(dB): | call | External Trigger: | Yes | Dimensions(mm): | 90Lx90Wx90H |
SW-8000T-CXPA Datasheet
