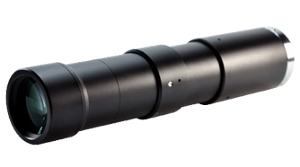

Moritex MML-ST telecentric lenses are designed for large format sensors up to 43.5mm image circles. These telecentric lenses are compatible with large image sensors featuring a 3.2μm pixel size and support down to 2/3” formats. Available in a range of configurations, these lenses offer magnifications from 0.3x to 10x and working distances from 79mm to 220mm.
Moritex is a leading manufacturer of machine vision lenses. Their wide range of telecentric lenses are meticulously engineered for industrial applications such as inspection, gauging, and alignment tasks that demand precision and accuracy.
Moritex telecentric lenses features include high contrast, high resolution, and very low distortion. Their design effectively minimizes distortion providing exceptional accuracy. Additionally, the optional integrated coaxial illumination incorporates Moritex's proprietary hot spot reduction techniques producing crystal-clear and sharp images.
Moritex telecentric lenses includes MML-ST lenses for sensors up to 43.5mm image circles, MML-HR lenses for sensors up to 5MP 2/3", MML-HR-5M lenses specifically designed for metrology and measurements with 5MP and 9MP cameras, and MML-SR lenses compatible with 1.1" and IF 35mm sensors.
| Get Quote |
Data Sheet |
Lens Outline Drawing |
Main optical specifications | Advanced optical specifications | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | Mag. | Image to Object mm |
Max. Image Circle mm |
Working Distance mm |
Resolution [μm] *1 |
Depth of Field [mm] *2 |
NA Object Side |
Aperture (f/#) |
TV distortion (%) |
|||
 |  | | MML03-HR220DVI-30M58 | 0.3 | 523.6 | 30 | 218 | 15.7-31.3 | 6.22~12.45 | 0.021~0.011 | 7~14 | ≤0.01 |
| | | MML037-HR220DVI-28F | 0.37 | 450.1 | 28 | 220 | 14~41.93 | 4.51~12.86 | 0.024~0.008 | 7.6~22 | ≤0.006 |
| | MML037-HR220VI-28P | 0.37 | 450.1 | 28 | 220 | 14~41.93 | 4.51~12.86 | 0.024~0.008 | 7.6~22 | ≤0.006 | |
| | | MML0550-HR220DVI-28F | 0.55 | 450.2 | 28 | 220 | 9.77~25.81 | 2.12~5.82 | 0.034~0.013 | 7.98~22 | ≤0.005 |
| | | MML0550-HR220VI-28P | 0.55 | 450.2 | 28 | 220 | 9.77~25.81 | 2.12~5.82 | 0.034~0.013 | 7.98~22 | ≤0.005 |
| | | MML068-HR220VI-28P | 0.68 | 420 | 28 | 220 | 7.51~22.37 | 1.31~3.81 | 0.045~0.015 | 7.6~22 | ≤0.021 |
| | MML1-HR130DVI-35F | 1 | 338.7 | 35 | 130 | 4.4~14.6 | 0.52~1.76 | 0.077~0.023 | 6.5~22 | ≤0.006 | |
| | MML1-HR130VI-35F | 1 | 328.3 | 35 | 130 | 4.4~14.6 | 0.518~1.76 | 0.077~0.023 | 6.47~22 | ≤0.017 | |
| | MML1.5-HR110VI-35F | 1.5 | 340.1 | 35 | 110 | 2.9~9.9 | 0.23~0.78 | 0.114~0.034 | 6.4~22 | ≤0.012 | |
| | | MML2-HR110DVI-43F | 2 | 387.64 | 43 | 110 | 2.68~7.46 | 0.16~0.44 | 0.125~0.045 | 7.99~22 | ≤0.017 |
|
| | MML2-HR110VI-43F | 2 | 387.64 | 43 | 110 | 2.68~7.46 | 0.16~0.44 | 0.125~0.045 | 7.99~22 | ≤0.017 |
| MML3-HR80DVI-43F | 3 | 373 | 43.5 | 80 | 2.6~5.1 | 0.1~0.2 | 0.13~0.066 | 11.5~22.6 | ≤-0.006 | ||
| | | MML3-HR80DVI-43M58 | 3 | 373 | 43.5 | 80 | 2.6~5.1 | 0.1~0.2 | 0.13~0.066 | 11.5~22.6 | ≤-0.006 |
| | MML3-HR110VI-43F | 3 | 397.8 | 43 | 110 | 3.3~4.9 | 0.13~0.19 | 0.1~0.06 | 15~22 | ≤0.009 | |
| | | MML5-HR80DVI-43F | 5 | 400 | 43.5 | 80 | 1.99~2.94 | 0.05~0.07 | 0.17~0.114 | 14.7~22 | ≤0.011 |
| | | MML5-HR80DVI-43M58 | 5 | 400 | 43.5 | 80 | 1.99~2.94 | 0.05~0.07 | 0.17~0.114 | 14.7~22 | ≤0.011 |
| | | MML10-HR80DVI-43F | 10 | 594 | 43.5 | 79 | 1.8~3 | 0.021~0.036 | 0.185~0.111 | 26.8~45 | ≤0.004 |
