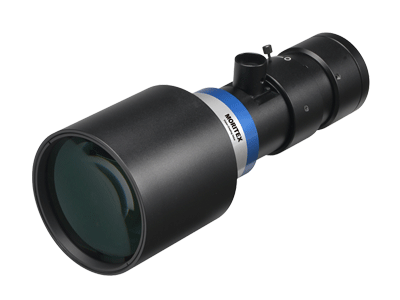

Moritex MTL lenses high resolution, C-mount bi-telecentric lenses are compatible with 3.5 μm/pixel sensors with image circles up to 18.5mm. Featuring low distortion and high telecentricity, MTL bi-telecentric lenses are designed for industrial applications, such as precision parts measurement and inspection, that require high precision and accuracy,
| Get Quote |
Data Sheet |
Outline Drawing |
Name | Main optical specifications | Object field of view | Advanced optical specifications | Mechanical specifications | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mag. | Max. Image Circle mm |
FOV mm |
1/2" | 2/3" | 1.1" | Working Distance |
F# Effective |
Distortion % |
Telecentricity ° |
Resolution*1 [μm] |
DOF*2 [mm] |
Front Outer dia. [Фmm] |
Barrel Length [mm] |
Weight [Kg] |
Mount | ||||||||||
| H 6.4 |
V 4.8 |
D 8 |
H 8.8 |
V 6.6 |
D 11 |
H 14.1 |
V 10.3 |
D 18.1 |
|||||||||||||||||
 |  |
|
MTL-3518C-053 | 0.527 | 18.5 | 35 | 12 | 9 | 15 | 17 | 13 | 21 | 27 | 20 | 33 | 95 | 8 | -0.03 | 0.05 | 9.6 | 2.3 | 60 | 138.3 | 0.51 | C |
| | | MTL-4518C-041 | 0.41 | 18.5 | 45 | 16 | 12 | 20 | 21 | 16 | 27 | 34 | 25 | 43 | 110 | 8 | -0.04 | 0.05 | 12.4 | 3.8 | 71 | 163.2 | 0.69 | C |
| | | MTL-5518C-034 | 0.335 | 18.5 | 55 | 19 | 14 | 24 | 26 | 20 | 33 | 42 | 31 | 52 | 135 | 8 | -0.03 | 0.04 | 15.2 | 5.7 | 78 | 198.1 | 0.79 | C |
| | | MTL-6518C-029 | 0.285 | 18.5 | 65 | 27 | 17 | 28 | 21 | 23 | 39 | 50 | 36 | 61 | 135 | 8 | -0.04 | 0.04 | 17.8 | 7.9 | 86 | 223.1 | 0.85 | C |
| | | MTL-8018C-023 | 0.228 | 18.5 | 80 | 28 | 21 | 35 | 39 | 29 | 48 | 62 | 45 | 77 | 165 | 8 | -0.03 | 0.03 | 22.2 | 12.3 | 104 | 272 | 1.33 | C |
| | | MTL-9018C-021 | 0.206 | 18.5 | 90 | 31 | 23 | 39 | 43 | 32 | 53 | 69 | 50 | 85 | 120 | 8 | 0.02 | 0.03 | 0.03 | 15.2 | 125 | 331.5 | 2.07 | C |
| | | MTL-10018C-019 | 0.185 | 18.5 | 100 | 35 | 26 | 43 | 48 | 36 | 59 | 76 | 56 | 95 | 220 | 8 | 0.02 | 0.03 | 27.5 | 18.7 | 125 | 327.3 | 2.11 | C |
| | | MTL-12018C-015 | 0.154 | 18.5 | 120 | 42 | 31 | 52 | 57 | 43 | 71 | 92 | 67 | 114 | 255 | 8 | 0.03 | 0.04 | 33 | 27 | 160 | 347.6 | 3.42 | C |
| | | MTL-13518C-014 | 0.137 | 18.5 | 135 | 47 | 35 | 58 | 64 | 48 | 30 | 103 | 75 | 128 | 260 | 8 | 0.03 | 0.05 | 37.1 | 34.1 | 160 | 409.2 | 3.77 | C |
| | | MTL-15018C-012 | 0.123 | 18.5 | 150 | 52 | 39 | 65 | 71 | 54 | 89 | 115 | 84 | 142 | 300 | 8 | 0.02 | 0.04 | 41.2 | 42.2 | 180 | 439.7 | 4.67 | C |
| | | MTL-18018C-010 | 0.103 | 18.5 | 180 | 62 | 47 | 78 | 86 | 64 | 107 | 137 | 101 | 170 | 350 | 8 | 0.03 | 0.05 | 49.4 | 60.6 | 210 | 492.7 | 7.31 | C |
| | | MTL-19518C-009 | 0.095 | 18.5 | 195 | 67 | 51 | 84 | 93 | 70 | 116 | 149 | 109 | 185 | 365 | 8 | -0.04 | 0.04 | 53.6 | 71.3 | 230 | 536.6 | 8.17 | C |
| | | MTL-24018C-008 | 0.077 | 18.5 | 240 | 83 | 62 | 104 | 114 | 86 | 143 | 184 | 134 | 227 | 375 | 8 | 0.05 | 0.05 | 65.8 | 107.6 | 300 | 685.4 | 15.5 | C |
| | | MTL-26518C-007 | 0.07 | 18.5 | 265 | 92 | 69 | 115 | 126 | 95 | 158 | 203 | 149 | 251 | 540 | 8 | 0.03 | 0.05 | 72.9 | 132.1 | 300 | 720.6 | 15.5 | C |
| | - | MTL-31018C-006 | 0.06 | 18.5 | 310 | 107 | 81 | 134 | 148 | 111 | 185 | 237 | 174 | 294 | 470 | 8 | 0.04 | 0.05 | 85.2 | 180.2 | 350 | 764.5 | 25.6 | C |
